Watts Wye-pattern strainer (Watts Series LF777SI / LFS777SI). Model LF777SI. Wye-pattern design with tapped retainer cap and closure plug; Standard screen is #20 mesh, 304 stainless steel; Special flared screen opening on upstream end for unrestricted flow; Maximum working pressure 125psi WSP @ 353°F for all sizes. material: Lead Free cast copper silicon alloy body and cap; 304 stainless steel screen
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

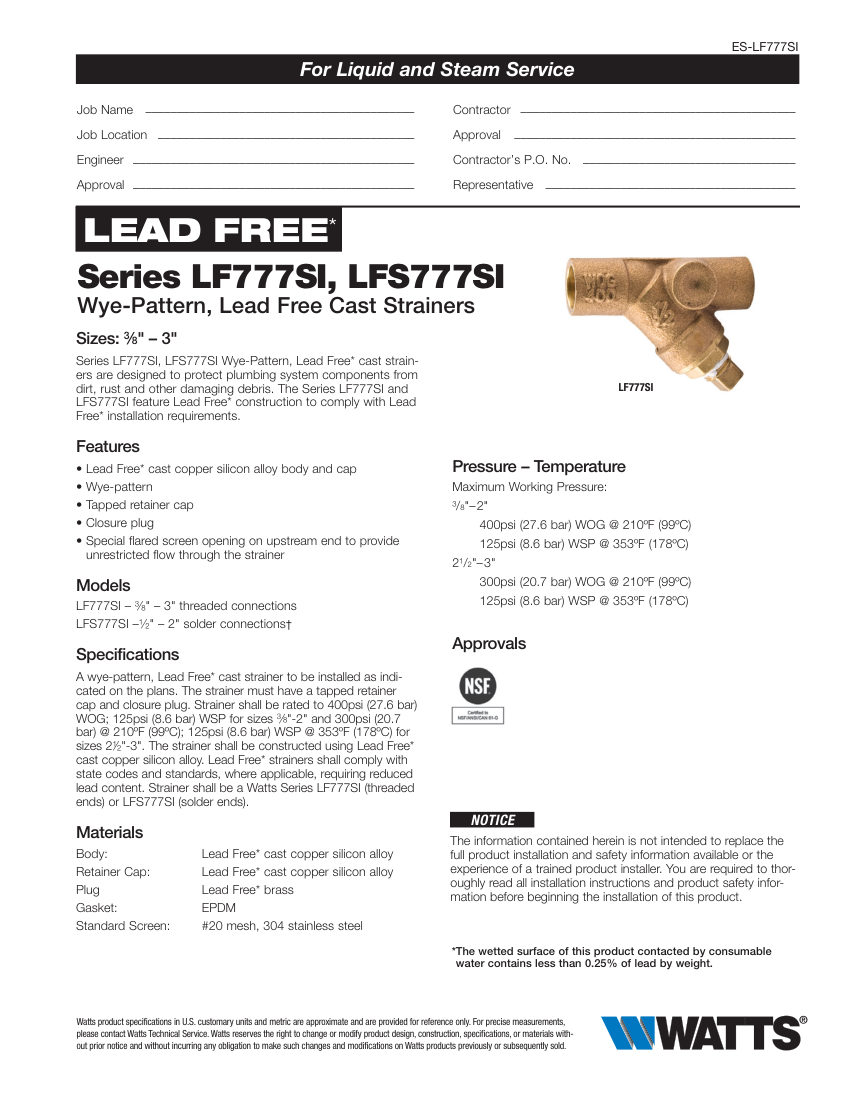

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Wye-pattern strainer (Watts Series LF777SI / LFS777SI). Model LF777SI. Wye-pattern design with tapped retainer cap and closure plug; Standard screen is #20 mesh, 304 stainless steel; Special flared screen opening on upstream end for unrestricted flow; Maximum working pressure 125psi WSP @ 353°F for all sizes. material: Lead Free cast copper silicon alloy body and cap; 304 stainless steel screen |
| Connection size | 3/8" – 3" |
| End connection | Threaded (LF777SI) or Solder (LFS777SI) |
| Pressure Rating | 400psi WOG @ 210°F (3/8"-2"); 300psi WOG @ 210°F (2.5"-3") |
| Compliance | Lead Free (<0.25% lead b |
