Watts 2-Piece Full Port Brass Ball Valve (Ball Valves). Model LFB6080, LFB6081. 316 stainless steel balls and stems; Virgin PTFE seats, seals, and stem packing; Blowout proof pressure retaining stem; Full port design for minimal pressure drop. material: Lead Free brass body, 316 stainless steel ball and stem, virgin PTFE seats and seals

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

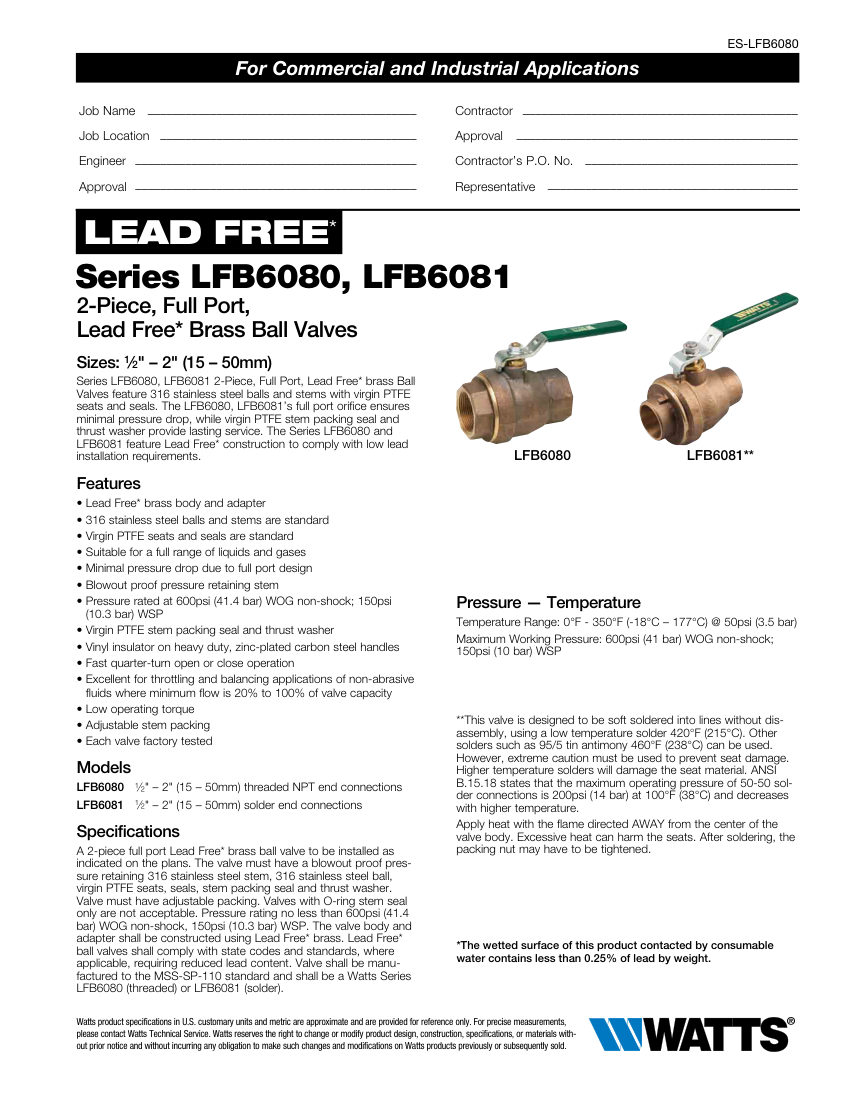

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts 2-Piece Full Port Brass Ball Valve (Ball Valves). Model LFB6080, LFB6081. 316 stainless steel balls and stems; Virgin PTFE seats, seals, and stem packing; Blowout proof pressure retaining stem; Full port design for minimal pressure drop. material: Lead Free brass body, 316 stainless steel ball and stem, virgin PTFE seats and seals
Connection size1/2" – 2" (15 – 50mm)
End connectionThreaded NPT (LFB6080) or Solder (LFB6081)
Pressure Rating600psi (41.4 bar) WOG non-shock; 150psi (10.3 bar) WSP
FinishZinc-plated carbon steel handles
ComplianceMSS-SP-110, Lead Free (<0.25% lead).
