Watts 2-Piece Full Port Ball Valve (Ball Valve). Model LFFBV-3-Press-M1. Lead Free* brass construction compliant with low lead requirements; Designed for ProPress® piping systems (Types K, L, M hard copper; soft copper 1/2"-1 1/4"); Triple reinforced stem seal design with bottom-loaded, blowout-proof stem; PTFE seats, seals, and thrust washers. material: Lead Free Brass (DZR CW511L, CW510L), PTFE, FKM, NBR, EPDM
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

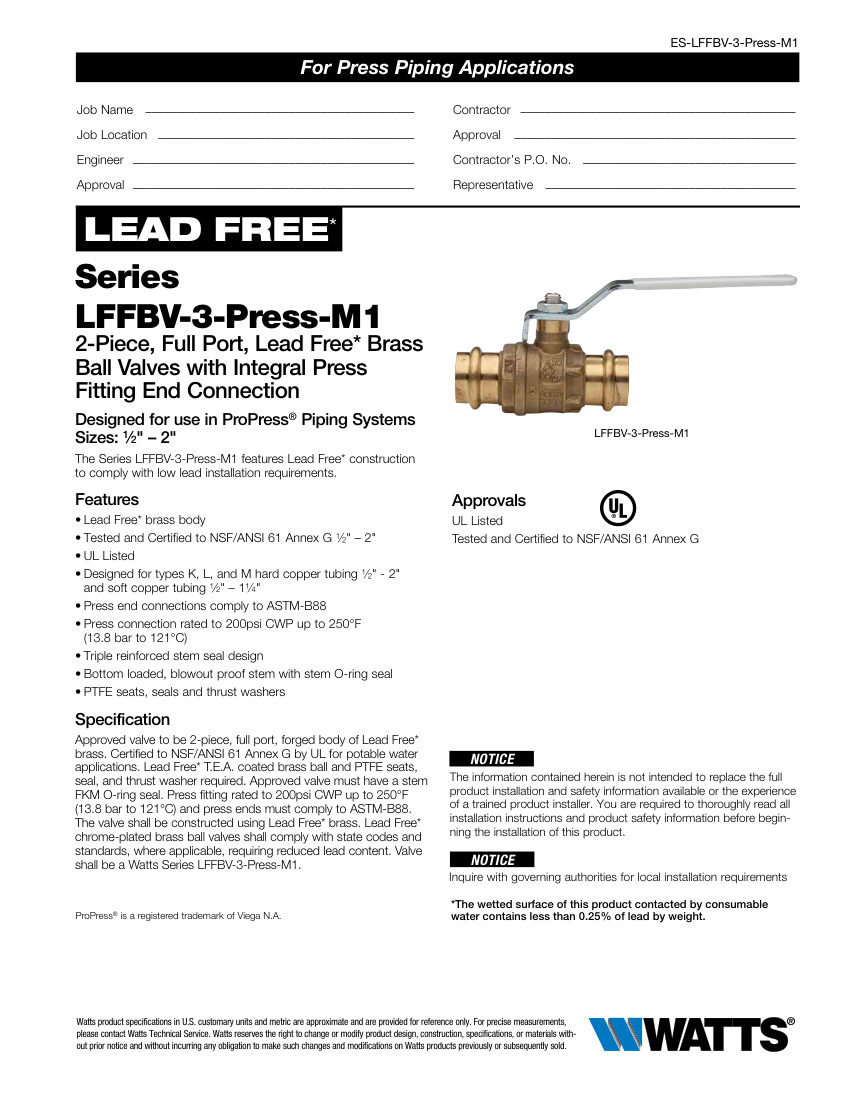

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts 2-Piece Full Port Ball Valve (Ball Valve). Model LFFBV-3-Press-M1. Lead Free* brass construction compliant with low lead requirements; Designed for ProPress® piping systems (Types K, L, M hard copper; soft copper 1/2"-1 1/4"); Triple reinforced stem seal design with bottom-loaded, blowout-proof stem; PTFE seats, seals, and thrust washers. material: Lead Free Brass (DZR CW511L, CW510L), PTFE, FKM, NBR, EPDM |
| Connection size | 1/2" – 2" |
| End connection | Integral Press Fitting |
| Pressure Rating | 200psi CWP up to 250°F (13.8 bar to 121°C) |
| Finish | Lead Free Chrome-Plated (implied by spec text 'Le |
