DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Name: Watts
Brand: Watts

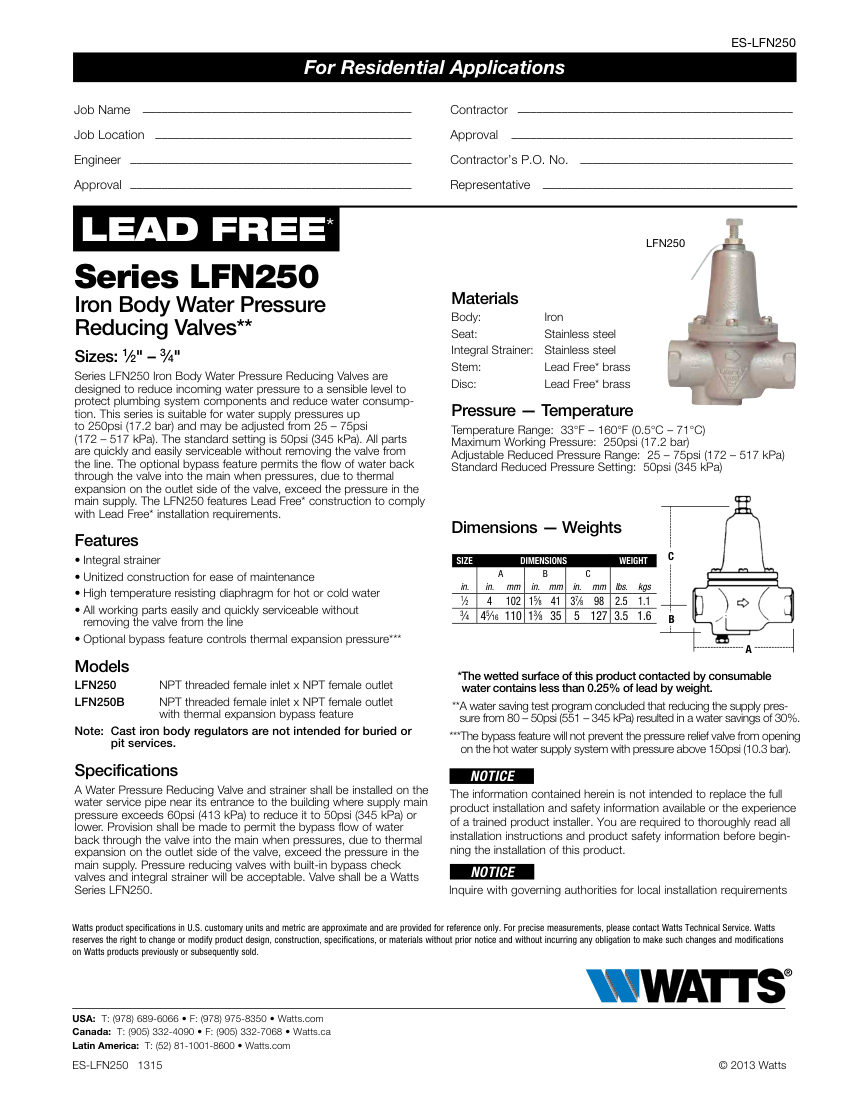

Watts Iron Body Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model LFN250. Standard reduced pressure setting is 50psi (345 kPa)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number
Description	Watts Iron Body Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model LFN250. Standard reduced pressure setting is 50psi (345 kPa)
Temperature range	33°F – 160°F (0.5°C – 71°C); Features integral strainer and unitized construction; All working parts serviceable without removing valve from line. material: Iron body, Lead Free brass stem/disc, Stainless steel seat/strainer
Connection size	1/2" – 3/4"
End connection	NPT threaded female inlet x NPT female outlet
Pressure Rating	Max Working: 250psi (17.2 bar)
Adjustable Reduced	25–75psi (172–517 kPa)
Dimensions	1/2": A=4in,
