DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED
Watts
Watts Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model LFN45B-M1. Sizes: 1/2" – 1"
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

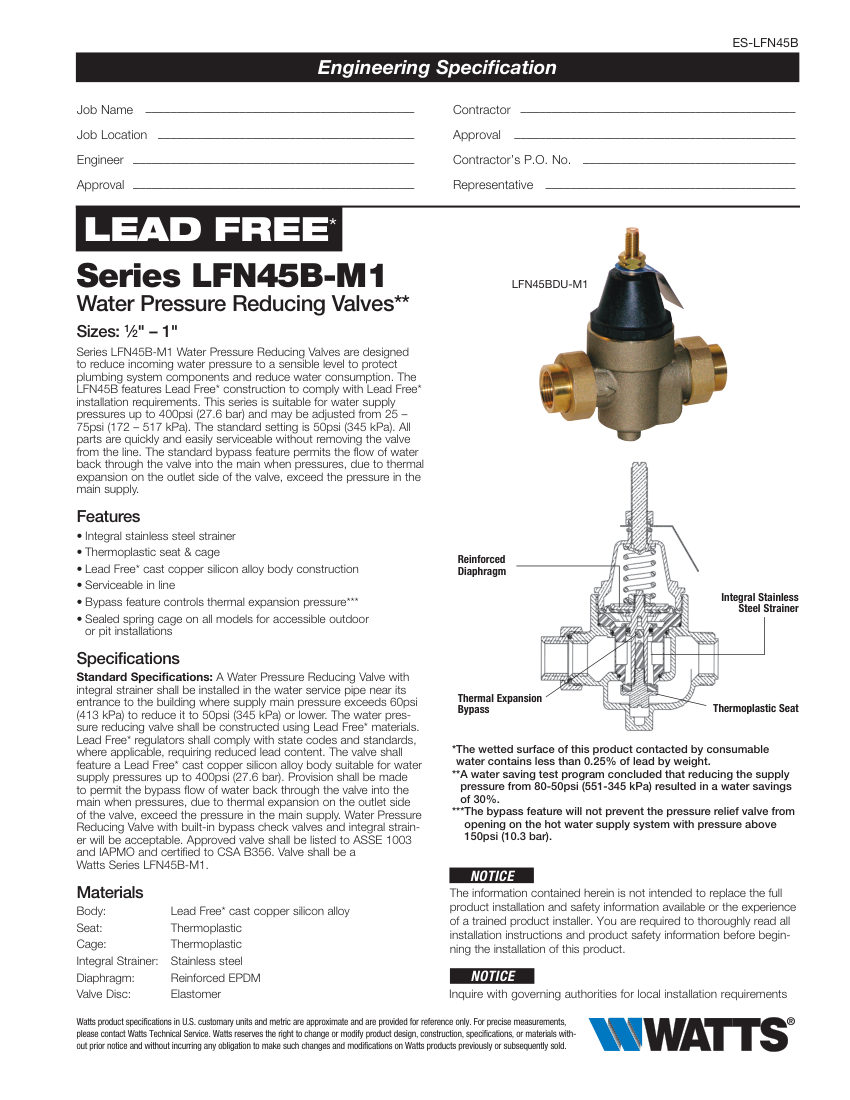

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Water Pressure Reducing Valve (Water Pressure Reducing Valves). Model LFN45B-M1. Sizes: 1/2" – 1" |
| Maximum Working Pressure | 400psi (27.6 bar) |
| Adjustable Pressure Range | 25 – 75psi (172 – 517 kPa) |
| Temperature Range | 33˚F – 180˚F (0.5˚C – 82˚C). material: Lead Free cast copper silicon alloy body, Thermoplastic seat & cage, Stainless steel strainer, Reinforced EPDM diaphragm |
| Connection size | 1/2" – 1" |
| Pressure Rating | Max Working Pressure: 400psi (27.6 bar) |
| Adjustable | 25 – 75psi (172 – 517 kPa) |
| Standard Setting | 50psi (345 kPa) |
| Mounting | In-line |
| Compliance | ASSE 1003, IAPMO, CSA B35 |
