DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Whole House Acidic Water Neutralizing System (Water Treatment). Model PWFCAL. Neutralizes acidic water (pH < 7) using granular calcite media; Designed for residential applications with intermittent flow; Automatic operation with periodic backwashing capability; Maximum water temperature 110°F (43°C). material: Fiberglass tank with thermoplastic inner liner; 100% polymer valve components; Granular calcite media

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

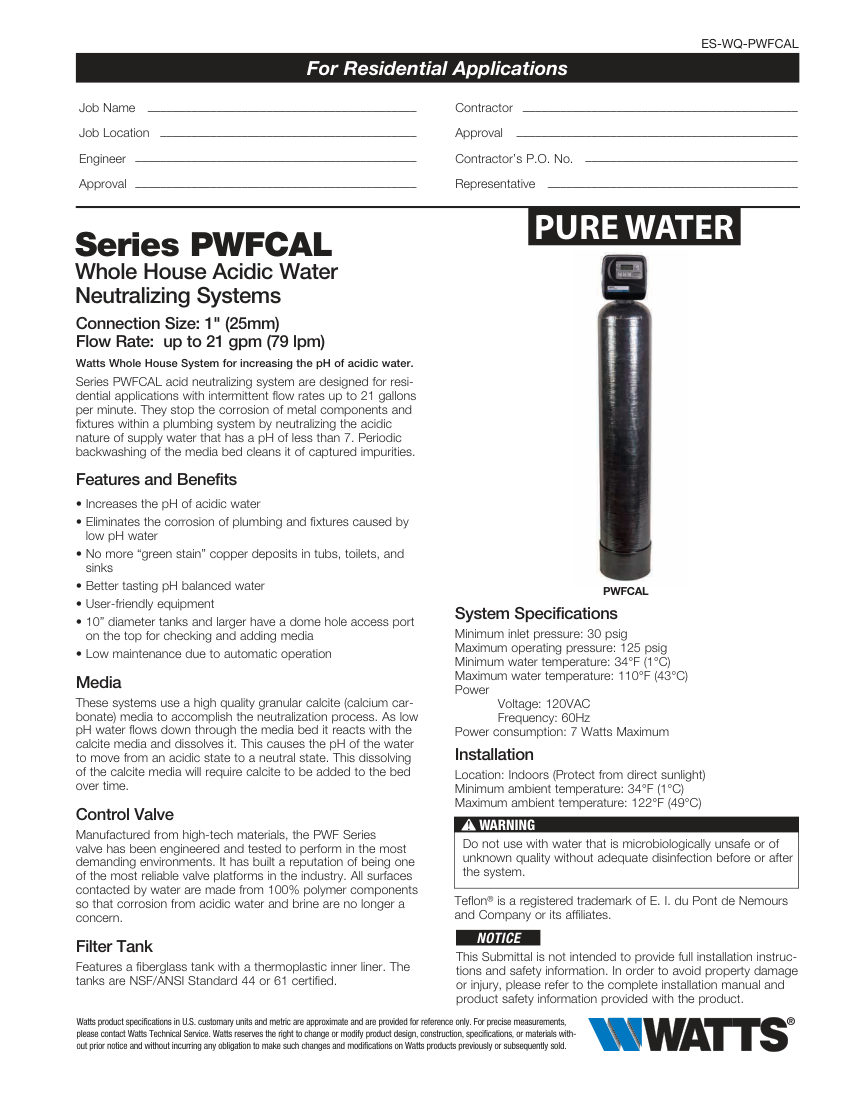

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Whole House Acidic Water Neutralizing System (Water Treatment). Model PWFCAL. Neutralizes acidic water (pH < 7) using granular calcite media; Designed for residential applications with intermittent flow; Automatic operation with periodic backwashing capability; Maximum water temperature 110°F (43°C). material: Fiberglass tank with thermoplastic inner liner; 100% polymer valve components; Granular calcite media
Connection size1" (25mm)
Pressure RatingMin 30 psig, Max 125 psig
Flow RateUp to 21 gpm (79 lpm)
MountingIndoors
DimensionsVaries by model (e.g., 16" x 11" x 62" for PW
