Watts Adjustable Closet Carrier (Closet Carrier). Model QT-101-L/R-AUX. Single horizontal adjustable closet carrier; Includes auxiliary inlet with 2 1/8" bend; Complies with ASME A112.6.1M up to 500 lb static load; Features adjustable ABS nipple with integral test cap. material: Epoxy coated cast iron, ABS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

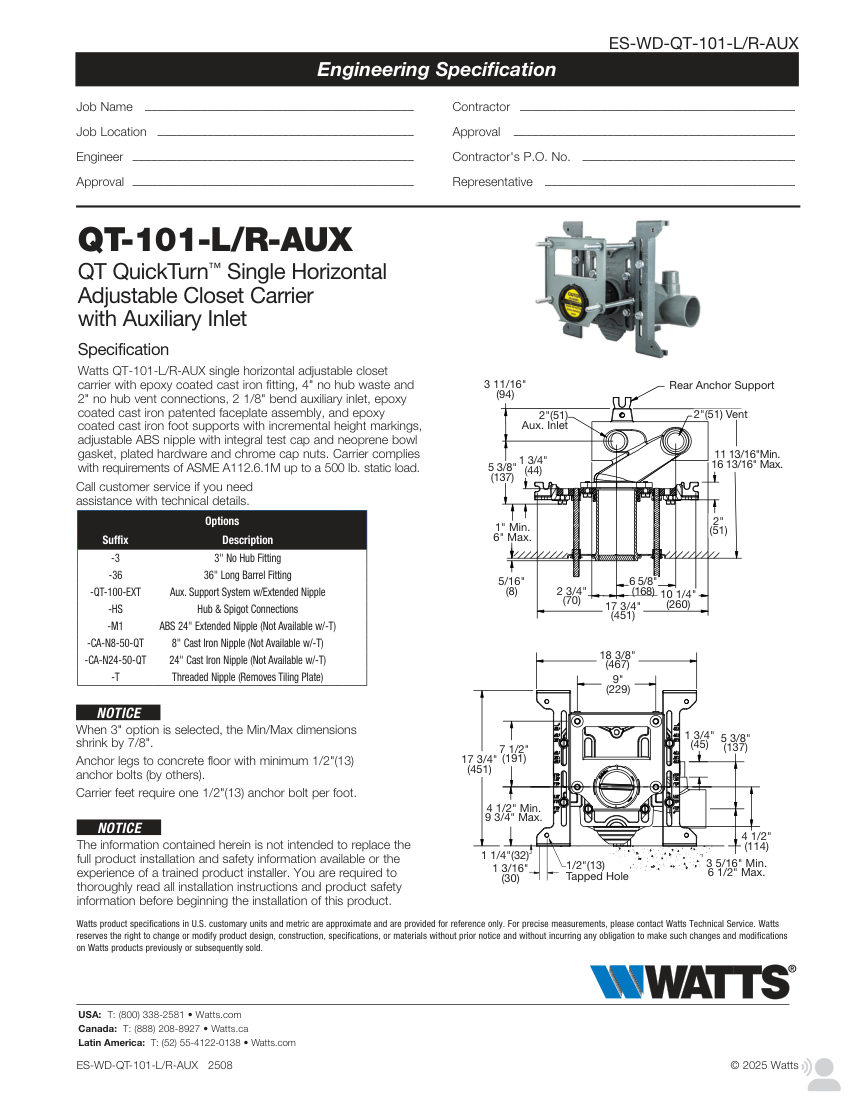

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Adjustable Closet Carrier (Closet Carrier). Model QT-101-L/R-AUX. Single horizontal adjustable closet carrier; Includes auxiliary inlet with 2 1/8" bend; Complies with ASME A112.6.1M up to 500 lb static load; Features adjustable ABS nipple with integral test cap. material: Epoxy coated cast iron, ABS
Connection size4" no hub waste, 2" no hub vent, 2 1/8" auxiliary inlet
End connectionNo hub waste, No hub vent, Auxiliary inlet
FinishEpoxy coated, Plated hardware, Chrome cap nuts
MountingHorizontal, Adjustable
Dimensions11 3/4" to 16 13/16" (295-424 mm) height range.
