Watts
Watts Roof Drain. Model RD-100-CP-85. Load Rating: HD (Safe Live Load 5000-7499 lbs / 2250-3375 kg)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

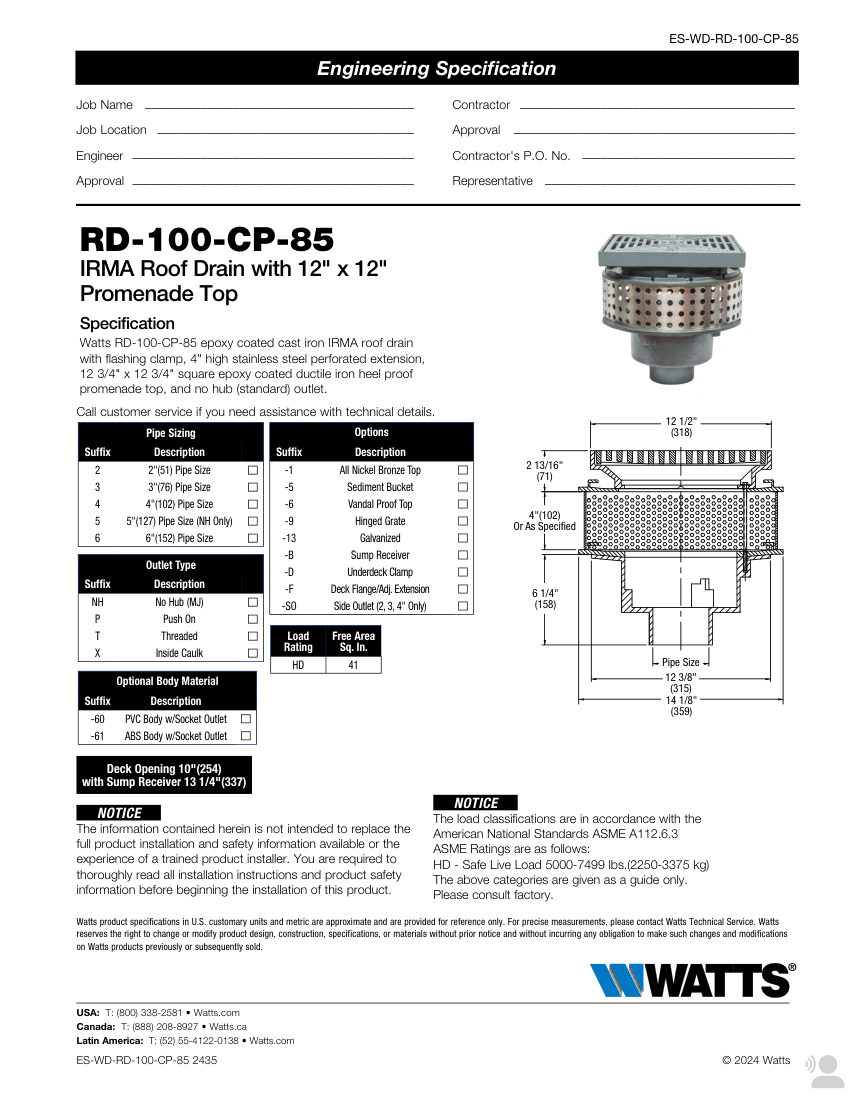

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Roof Drain. Model RD-100-CP-85. Load Rating: HD (Safe Live Load 5000-7499 lbs / 2250-3375 kg) |
| Free Area | 41 Sq. In.; Includes flashing clamp and 4" high stainless steel perforated extension; Standard outlet is No Hub (MJ). material: Epoxy coated cast iron body, 12 3/4" x 12 3/4" square epoxy coated ductile iron promenade top, 4" high stainless steel perforated extension |
| Connection size | 4" (102) Pipe Size |
| End connection | No Hub (MJ) |
| Finish | Epoxy Coated |
| Mounting | Flashing clamp, Deck opening 10" (254) |
| Dimensions | Promenade Top: 12 3/4" x 12 3/4" (324 x 324 mm) |
| Deck Opening | 10" (254 |
