Watts

Watts Overflow Roof Drain (Roof Drain). Model RD-200-R. Includes self-locking polyethylene dome (standard); Integral 2" (51 mm) high external water dam; Free area 35 sq. in. for 2" pipe size; Optional body materials include PVC, ABS, and Galvanized. material: Epoxy coated cast iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

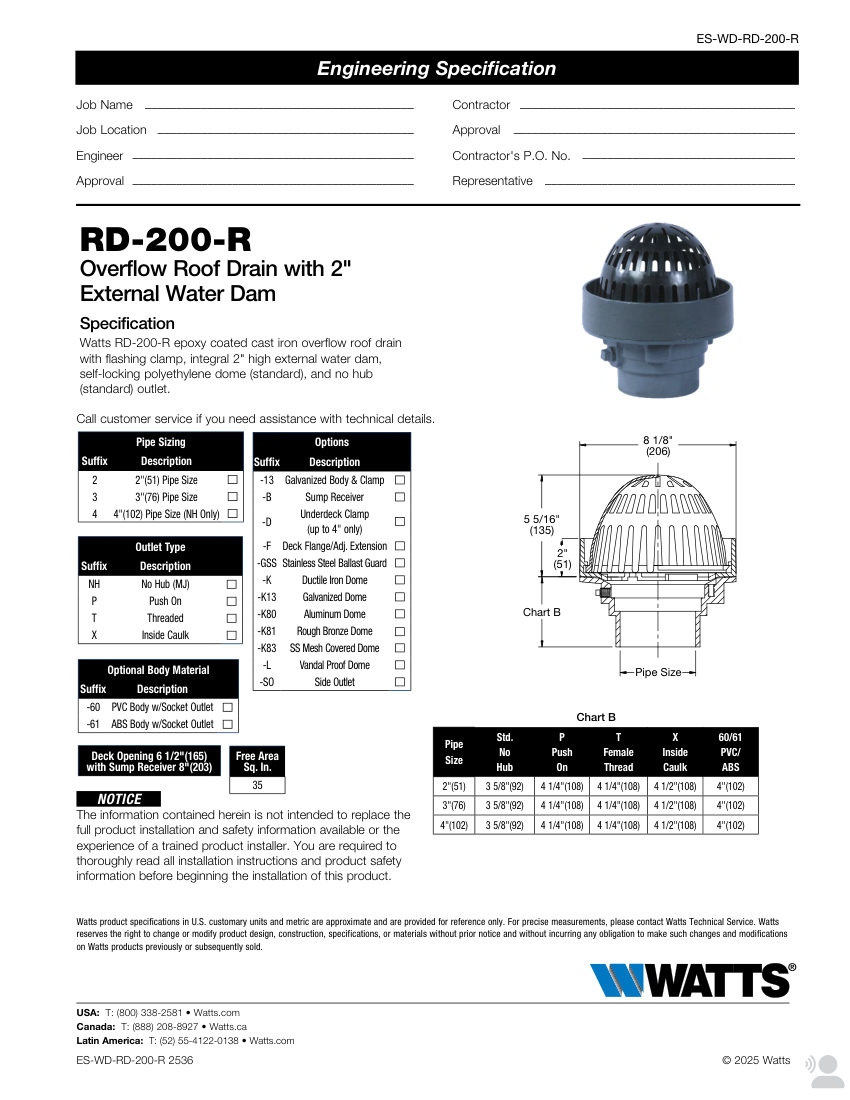

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Overflow Roof Drain (Roof Drain). Model RD-200-R. Includes self-locking polyethylene dome (standard); Integral 2" (51 mm) high external water dam; Free area 35 sq. in. for 2" pipe size; Optional body materials include PVC, ABS, and Galvanized. material: Epoxy coated cast iron
Connection size2" (51 mm) standard, 3" (76 mm), 4" (102 mm) options
End connectionNo Hub (MJ), Push On, Threaded, Inside Caulk, PVC/ABS Socket
FinishEpoxy coated
MountingFlashing clamp, integral 2" high external water dam
Dimensions88 1/8" (206 mm) diameter, 55 5/16" (135 mm) height, 6 1/2" (165 mm) dec
