DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Hose Connection Vacuum Breaker (Backflow Preventer). Model S8C / S8. Prevents back-siphonage of contaminated water into potable supply; Maximum operating temperature 180°F (82°C); Not suitable for continuous pressure or backpressure protection; Features durable rubber diaphragm and disc for positive seating. material: Solid brass body, stainless steel working parts

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

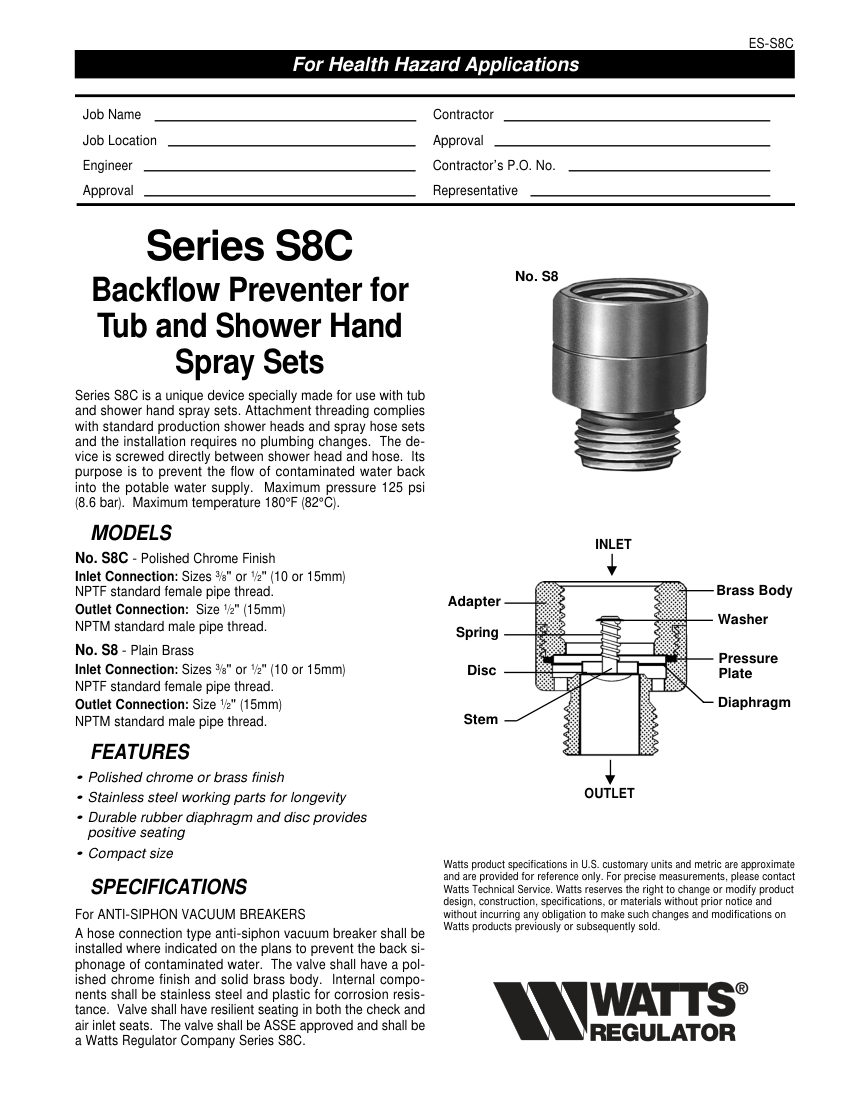

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Hose Connection Vacuum Breaker (Backflow Preventer). Model S8C / S8. Prevents back-siphonage of contaminated water into potable supply; Maximum operating temperature 180°F (82°C); Not suitable for continuous pressure or backpressure protection; Features durable rubber diaphragm and disc for positive seating. material: Solid brass body, stainless steel working parts
Connection sizeInlet 3/8" or 1/2" NPTF, Outlet 1/2" NPTM
End connectionNPTF female inlet, NPTM male outlet
Pressure RatingMax 125 psi (8.6 bar)
Flow RateUp to 10 gpm (38 lpm)
FinishPolished Chrome (S8C) or Plain Bra
