DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Quick-Connect Valve (Watts Series 35 Quick-Connect Valves). Model Series 35 (Types 38, 39, 39R, 40, 41, 43). Lead-free wetted surface (<0.25% lead by weight); Allows full rotation under pressure; Tool-free connection and disconnect; Suitable for residential and commercial applications. material: Polysulfone

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

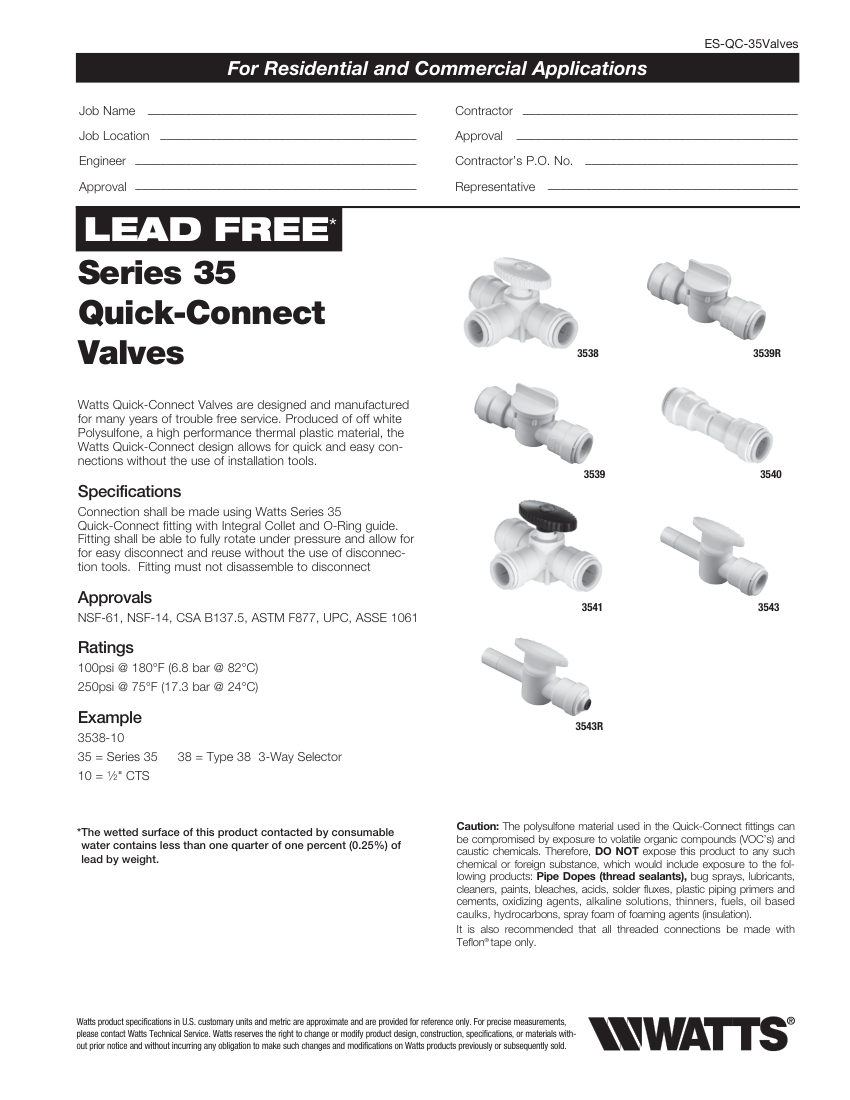

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Quick-Connect Valve (Watts Series 35 Quick-Connect Valves). Model Series 35 (Types 38, 39, 39R, 40, 41, 43). Lead-free wetted surface (<0.25% lead by weight); Allows full rotation under pressure; Tool-free connection and disconnect; Suitable for residential and commercial applications. material: Polysulfone
Connection size3/8" CTS, 1/2" CTS, 3/4" CTS, 1/4" OD
End connectionQuick-Connect with Integral Collet and O-Ring guide
Pressure Rating100psi @ 180°F (6.8 bar @ 82°C); 250psi @ 75°F (17.3 bar @ 24°C)
FinishOff white
DimensionsVaries by model (e.g., Type 38: 3.5" L x 2.25" H
