Watts
Watts Bimetal Thermometer (Thermometers). Model TBC-21/2-4, TBC-21/2-6, TBC-21/2-8, TBC-21/2-12. Working Temperature Range: 32°F to 932°F (0°C to 500°C); Dual reading scale (°F, °C); Available in probe lengths of 4", 6", 8", and 12"
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Watts
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

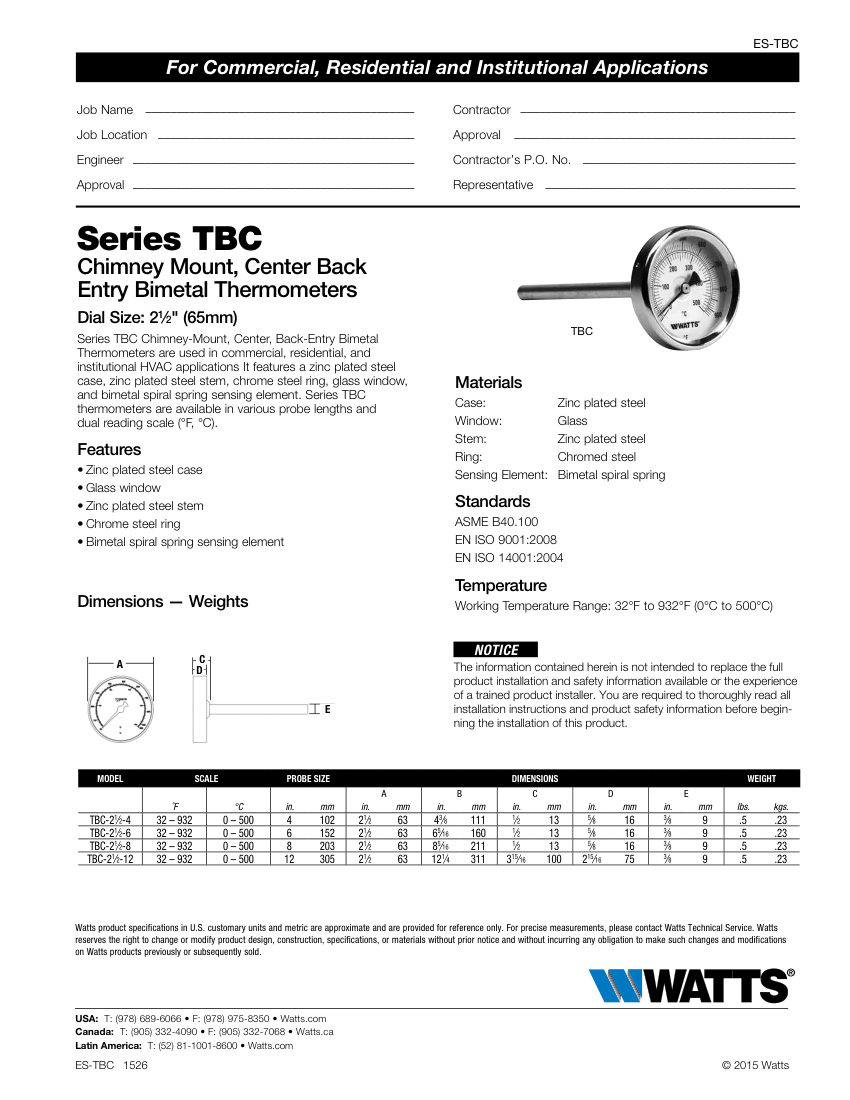

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Watts Bimetal Thermometer (Thermometers). Model TBC-21/2-4, TBC-21/2-6, TBC-21/2-8, TBC-21/2-12. Working Temperature Range: 32°F to 932°F (0°C to 500°C); Dual reading scale (°F, °C); Available in probe lengths of 4", 6", 8", and 12" |
| Weight | 0.5 lbs (0.23 kgs). material: Zinc plated steel case, zinc plated steel stem, chromed steel ring, glass window, bimetal spiral spring sensing element |
| End connection | Center Back Entry |
| Finish | Zinc plated |
| Mounting | Chimney Mount |
| Dimensions | Dial Size: 2.5" (65mm) |
| Probe Lengths | 4", 6", 8", 12" |
| Compliance | ASME B40.100, EN ISO 9001:2008, EN ISO 14001:20 |
