Watts

Watts PEX Tubing Stud Reel (WaterPEX). Model WPSR06-500R, WPSR08-300R, WPSR06-500B, WPSR08-300B. Lead-free wetted surface (<0.25% lead by weight); Not approved for fire protection applications

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

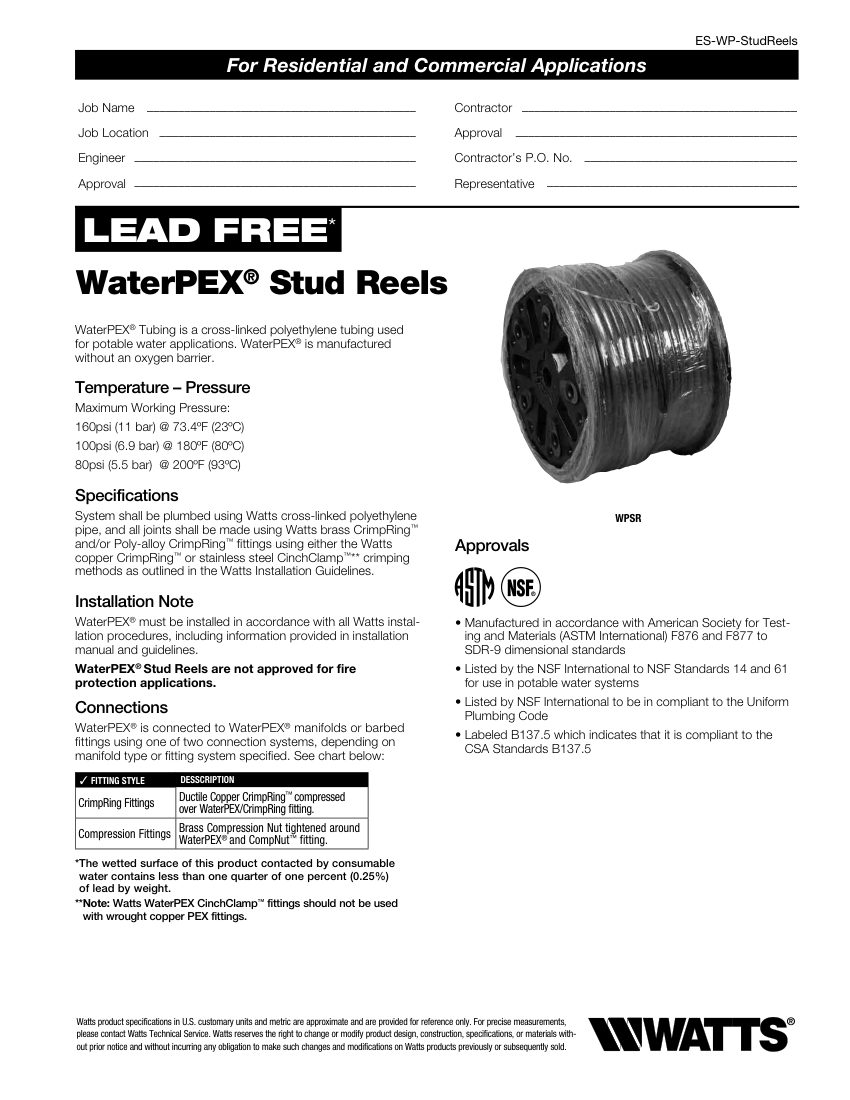

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts PEX Tubing Stud Reel (WaterPEX). Model WPSR06-500R, WPSR08-300R, WPSR06-500B, WPSR08-300B. Lead-free wetted surface (<0.25% lead by weight); Not approved for fire protection applications
Fluid capacity0.53 gal/100 ft (3/8 in) or 0.96 gal/100 ft (1/2 in)
Reel dimensions18 in height, 16 in stud width, 12.5 in depth. material: Cross-linked polyethylene (PEX), HDPE plastic reel
Connection size3/8 in (10 mm) ID, 1/2 in (15 mm) ID
End connectionCrimpRing or Compression fittings
Pressure Rating160 psi @ 73.4°F, 100 psi @ 180°F, 80 psi @ 200°F
MountingStud mount with ridged pipe a
