DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Watts

Watts Copper Stub-out Elbow (WaterPEX Copper Stub-out Elbows). Model WPSB. Lead-free wetted surface (<0.25% lead by weight); Maximum operating temperature 180°F (82°C) at 100 psi; Compatible with copper crimp rings or stainless steel cinch clamps; Designed for transition from WaterPEX pipe to fixture stop valve. material: Seamless copper tubing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

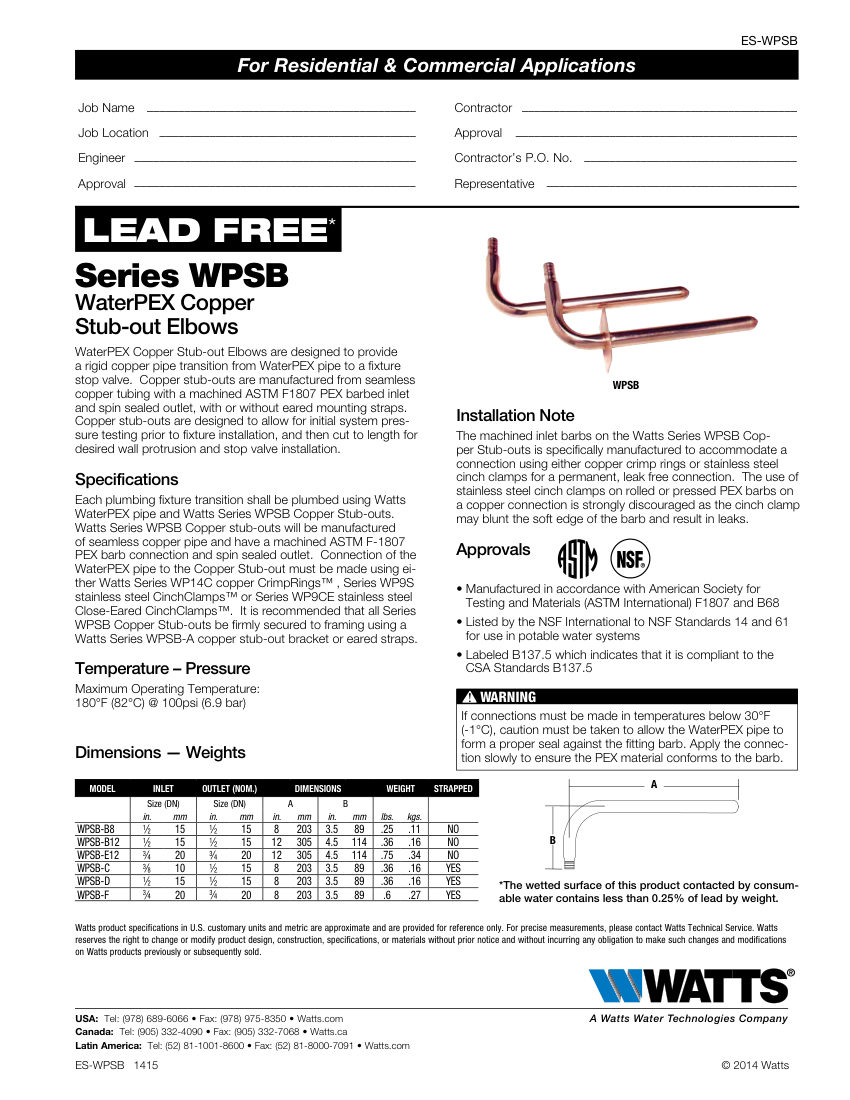

Watts cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionWatts Copper Stub-out Elbow (WaterPEX Copper Stub-out Elbows). Model WPSB. Lead-free wetted surface (<0.25% lead by weight); Maximum operating temperature 180°F (82°C) at 100 psi; Compatible with copper crimp rings or stainless steel cinch clamps; Designed for transition from WaterPEX pipe to fixture stop valve. material: Seamless copper tubing
Connection size1/2 in. (15 mm) or 3/4 in. (20 mm) inlet; 1/2 in. (15 mm) or 3/4 in. (20 mm) outlet
End connectionMachined ASTM F1807 PEX barbed inlet, spin sealed outlet
Pressure Rating100 psi (6.9 bar)
MountingWith or without eared mounting st
