WattsWatts LFBIV

Watts Boiler Isolation Valve (Boiler Isolation Valves). Model LFBIV-UT-HCN. Full-port, quarter-turn ball valve with color-coded tee handle; Includes quarter-turn purge and drain valve with hose connection; Suitable for wall-hung and combination water heating & space heating combi boilers; No additional adapters required for installation. material: Lead Free copper silicon alloy body, Lead Free brass ball, Virgin PTFE seats

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFWatts-LFBIV.pdfData sheet

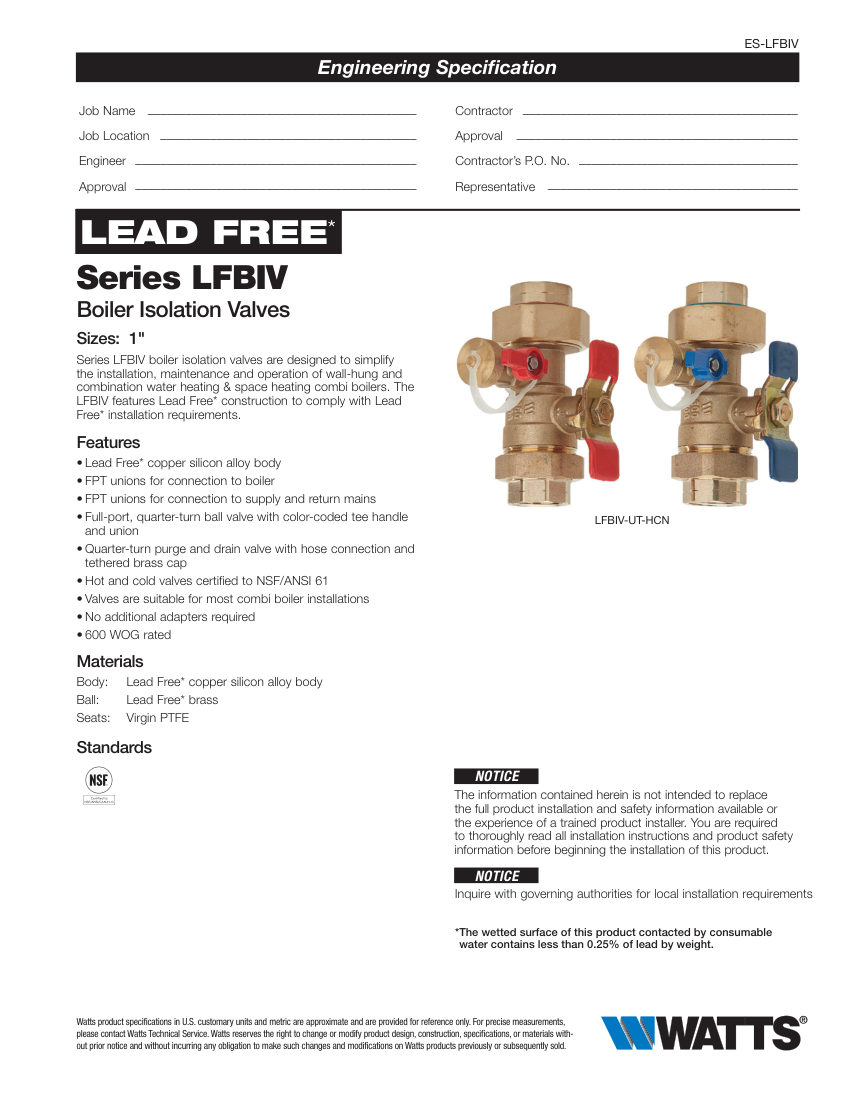

Watts Watts LFBIV cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
Watts LFBIV
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberWatts LFBIV
DescriptionWatts Boiler Isolation Valve (Boiler Isolation Valves). Model LFBIV-UT-HCN. Full-port, quarter-turn ball valve with color-coded tee handle; Includes quarter-turn purge and drain valve with hose connection; Suitable for wall-hung and combination water heating & space heating combi boilers; No additional adapters required for installation. material: Lead Free copper silicon alloy body, Lead Free brass ball, Virgin PTFE seats
Connection size1"
End connectionFPT unions
Pressure Rating600 WOG
DimensionsA: 5 3/8 in (137 mm), B: 2 5/8 in (66 mm), C: 2 1/8 in (54 mm)
ComplianceNSF/ANSI 61,
