DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

WattsWVS-3

Watts Valve Setter (Valve Setters). Model WVS. Designed for Watts SilverEagle N-Shape Assemblies; Integral ductile iron support eliminates thrust block requirements; Maximum working pressure 175 psi (12.1 bar); Temperature range 32°F to 140°F (0°C to 60°C). material: Ductile iron A536 GR 65-45-12, Fusion epoxy coated

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFWVS-3.pdfData sheet

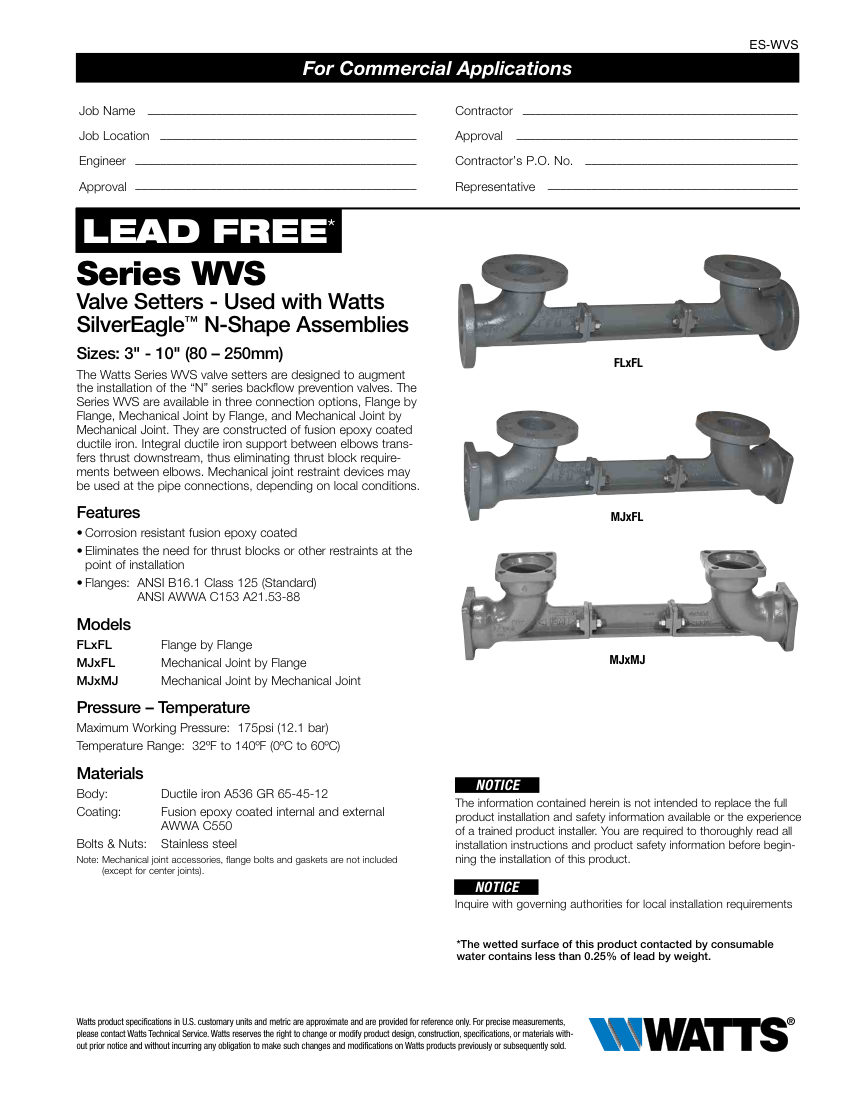

Watts WVS-3 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Watts
Catalog no.
WVS-3
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberWVS-3
DescriptionWatts Valve Setter (Valve Setters). Model WVS. Designed for Watts SilverEagle N-Shape Assemblies; Integral ductile iron support eliminates thrust block requirements; Maximum working pressure 175 psi (12.1 bar); Temperature range 32°F to 140°F (0°C to 60°C). material: Ductile iron A536 GR 65-45-12, Fusion epoxy coated
Connection size3" - 10" (80 – 250mm)
End connectionFlange by Flange, Mechanical Joint by Flange, Mechanical Joint by Mechanical Joint
Pressure Rating175psi (12.1 bar)
FinishFusion epoxy coated internal and external
ComplianceANSI B16.1 Class 125, ANSI AWWA C153 A21.53-

Also cataloged as: WVS-4, WVS-6, WVS-8, WVS-10
