DIV 22 · PLUMBINGBATHTUBSCUT SHEET INDEXED

American Standard1036962950

American Standard Tub and Shower Trim Kit with Valve (Tub and Shower). Model 1036962950. Includes 6-function showerhead with Advanced Spray Engine; One-piece cartridge with Ceramic Disc Mixing Valve and Ceramic Balancing Spool; Integrated check valves to eliminate cross flow; Adjustable hot limit safety stop to reduce scalding risk. material: Cast DZR Brass Valve Body, Metal Wall Valve Trim, Plastic I.P.S Diverter Spout

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1036962950.pdfData sheet

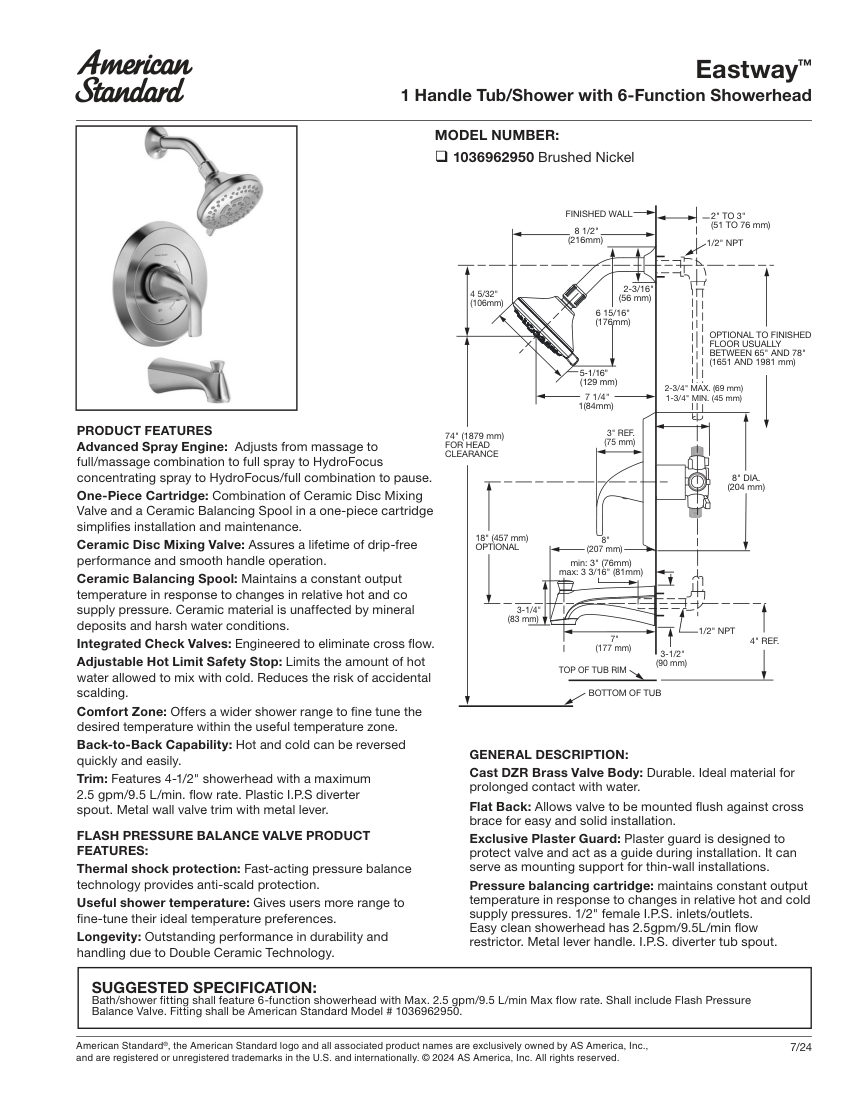

American Standard 1036962950 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1036962950
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1036962950
DescriptionAmerican Standard Tub and Shower Trim Kit with Valve (Tub and Shower). Model 1036962950. Includes 6-function showerhead with Advanced Spray Engine; One-piece cartridge with Ceramic Disc Mixing Valve and Ceramic Balancing Spool; Integrated check valves to eliminate cross flow; Adjustable hot limit safety stop to reduce scalding risk. material: Cast DZR Brass Valve Body, Metal Wall Valve Trim, Plastic I.P.S Diverter Spout
Connection size1/2" NPT
End connection1/2" NPT
Flow Rate2.5 gpm/9.5 L/min
FinishBrushed Nickel
MountingWall.
