DIV 22 · PLUMBINGBATHTUBSCUT SHEET INDEXED

American StandardWilliamsburg Anti-Scald Balance Tub/Shower1041229

American Standard Anti-Scald Pressure Balance Tub/Shower Set (Williamsburg). Model 1041.229.002. Pressure balancing cartridge maintains constant output temperature; Adjustable hot limit safety stop to reduce scalding risk; Back-to-back capability for hot and cold supply reversal; Includes 2 sets of handles (metal and porcelain levers). material: Cast brass body, ceramic disc valve cartridge

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1041229.pdfData sheet

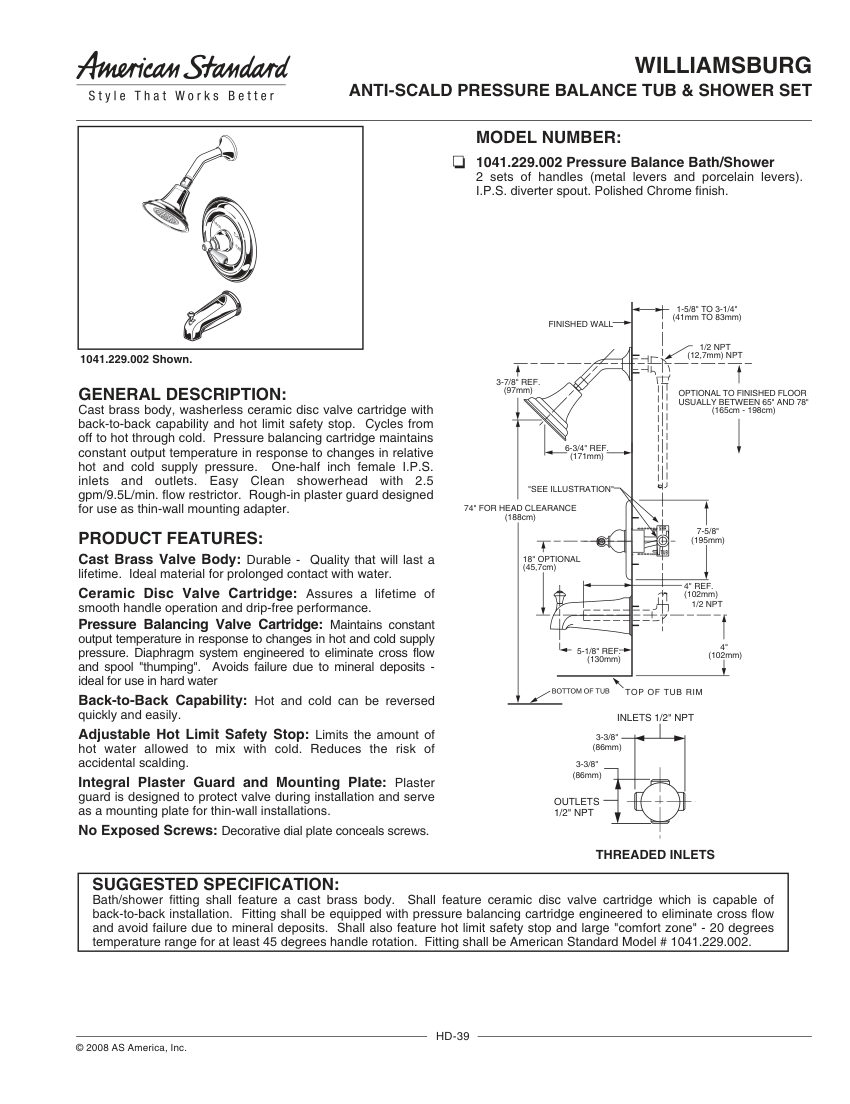

American Standard 1041229 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1041229
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1041229
DescriptionAmerican Standard Anti-Scald Pressure Balance Tub/Shower Set (Williamsburg). Model 1041.229.002. Pressure balancing cartridge maintains constant output temperature; Adjustable hot limit safety stop to reduce scalding risk; Back-to-back capability for hot and cold supply reversal; Includes 2 sets of handles (metal and porcelain levers). material: Cast brass body, ceramic disc valve cartridge
Connection size1/2 NPT
End connectionFemale I.P.S. inlets and outlets
Flow Rate2.5 gpm/9.5L/min
FinishPolished Chrome
MountingIntegral plaster guard and mounting plate for thin-wall installation

Also cataloged as: 1041229.002
