DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American StandardMetering 4 Inch Centerset Gooseneck Faucet, 1.0 gpm1340265

American Standard Centerset Gooseneck Faucet (Metering Faucets). Model 1340.265. Pressure compensating aerator maintains constant 1.0 gpm flow; Field-convertible rigid/swivel gooseneck spout; Automatic shut-off stops water and energy waste; Factory set for maximum 0.17 gallon flow per activation. material: Vandal-resistant solid brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1340265.pdfData sheet

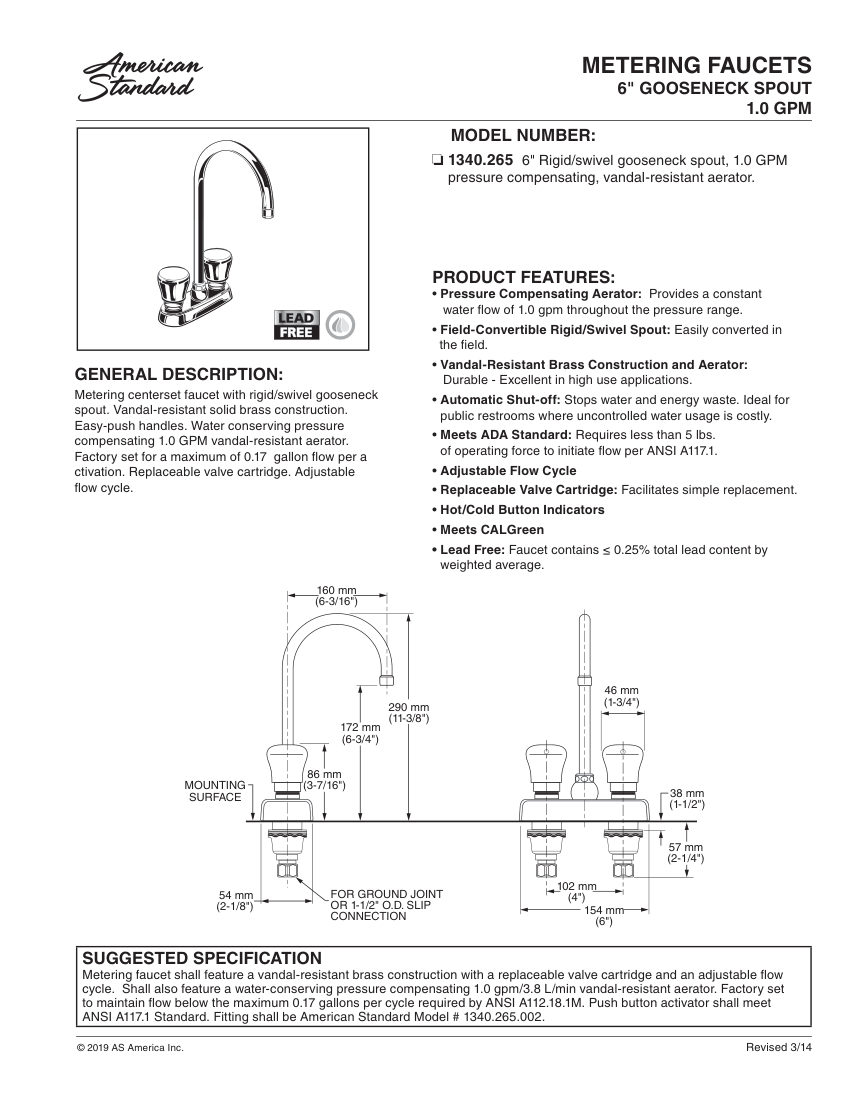

American Standard 1340265 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1340265
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1340265
DescriptionAmerican Standard Centerset Gooseneck Faucet (Metering Faucets). Model 1340.265. Pressure compensating aerator maintains constant 1.0 gpm flow; Field-convertible rigid/swivel gooseneck spout; Automatic shut-off stops water and energy waste; Factory set for maximum 0.17 gallon flow per activation. material: Vandal-resistant solid brass
Connection size1-1/2" O.D. slip connection
End connectionSlip connection
Flow Rate1.0 gpm
MountingCenterset, 4 inch centers
Dimensions160 mm (6-3/16") height, 172 mm (6-3/4") spout reach.

Also cataloged as: 1340265.002
