DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American StandardMetering 8 Inch Widespread Gooseneck Faucet, 1.0 gpm1340855

American Standard Widespread Gooseneck Faucet (Metering Faucets). Model 1340.855. Pressure compensating aerator maintains constant 1.0 gpm flow; Vandal-resistant brass construction and aerator; Automatic shut-off stops water and energy waste; Factory set for maximum 0.17 gallon flow per activation. material: Vandal-resistant solid brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1340855.pdfData sheet

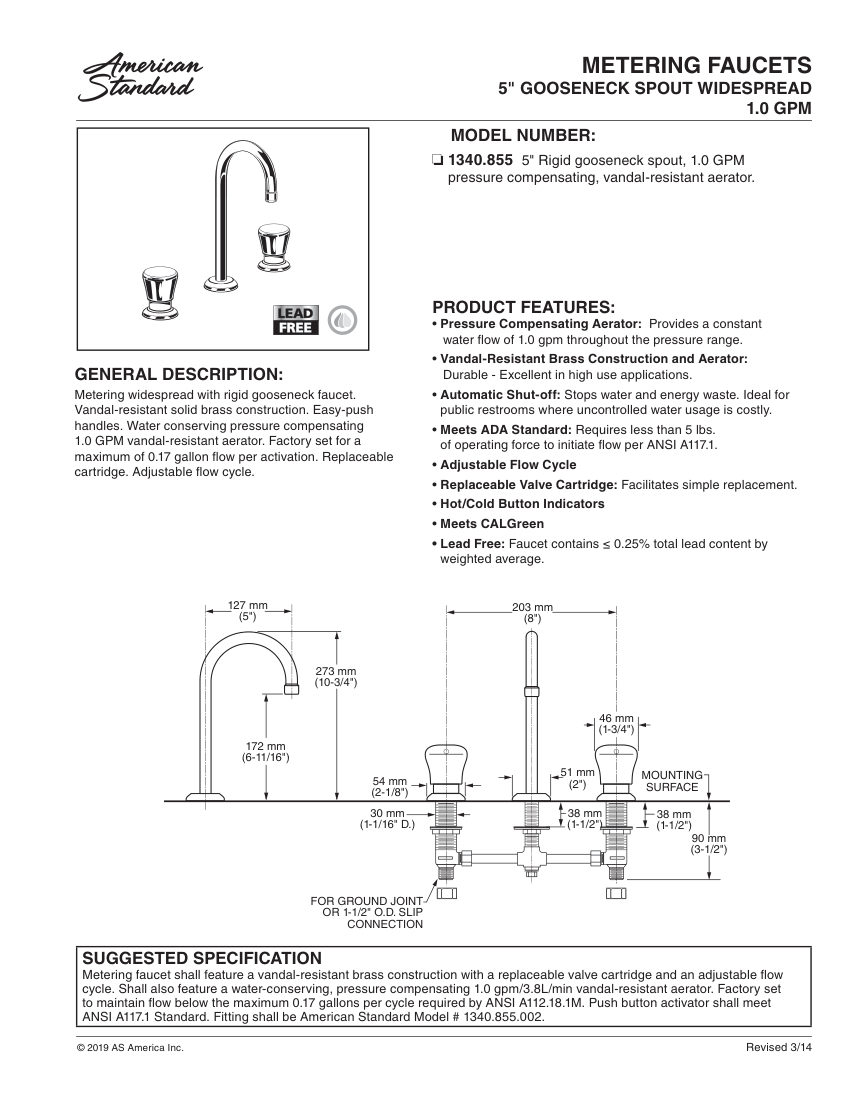

American Standard 1340855 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1340855
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1340855
DescriptionAmerican Standard Widespread Gooseneck Faucet (Metering Faucets). Model 1340.855. Pressure compensating aerator maintains constant 1.0 gpm flow; Vandal-resistant brass construction and aerator; Automatic shut-off stops water and energy waste; Factory set for maximum 0.17 gallon flow per activation. material: Vandal-resistant solid brass
Connection size1-1/2" O.D. slip connection
End connectionGround joint or 1-1/2" O.D. slip connection
Flow Rate1.0 gpm
MountingDeck mount
Dimensions8" widespread, 5" gooseneck spout.

Also cataloged as: 1340855.002
