DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American Standard2.5 gpm/9.5 Lpf 3-Function Hand Shower With Pause Feature1660767

American Standard 3-Function Hand Shower with Pause Feature (Hand Shower). Model 1660.767. Includes non-positive shut-off pause feature for ADA compliance; 3-function spray settings: full spray, combination, and massage; Features pressure compensating flow regulator and check valve; Easy clean rubber spray nozzles to prevent clogging. connectionSize: 1/2" NPSM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1660767.pdfData sheet

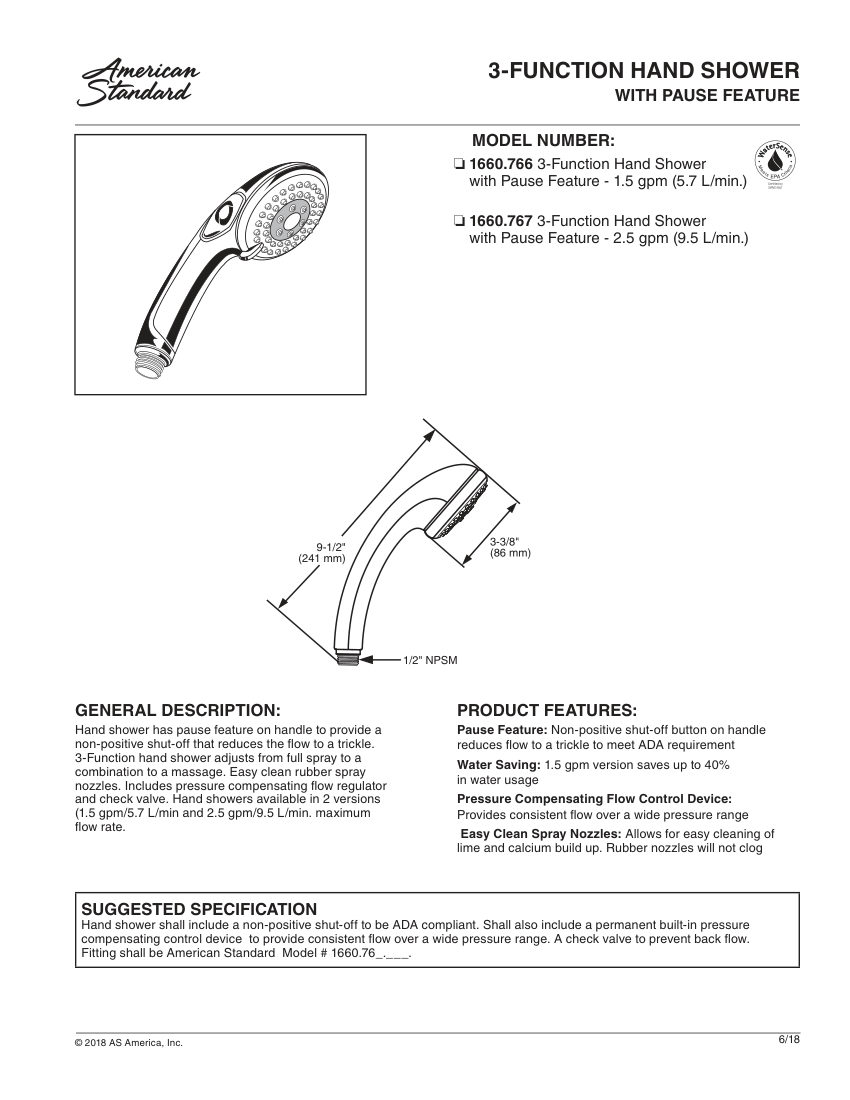

American Standard 1660767 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1660767
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1660767
DescriptionAmerican Standard 3-Function Hand Shower with Pause Feature (Hand Shower). Model 1660.767. Includes non-positive shut-off pause feature for ADA compliance; 3-function spray settings: full spray, combination, and massage; Features pressure compensating flow regulator and check valve; Easy clean rubber spray nozzles to prevent clogging. connectionSize: 1/2" NPSM
End connection1/2" NPSM
Flow Rate2.5 gpm (9.5 L/min.)
FinishPolished Chrome, Satin Nickel
Dimensions9-1/2" (241 mm) x 3-3/8" (86 mm)
ComplianceASME A112.18.1, CSA B125.1, ANSI A117.1.

Also cataloged as: 1660767.002, 1660767.295
