DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardFloWise 25-In. 3-Function 2.0 GPM Shower System Kit1662143

American Standard Shower System Kit (Shower Systems). Model 1662.143. 3-function hand shower with Ultra Water Saving, Combination, and Full spray modes; Saves up to 40% water usage in Ultra Water Saving mode; Auto Return feature resets to 1.5 GPM mode when water is off; Includes double check valves to prevent cross flow. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662143.pdfData sheet

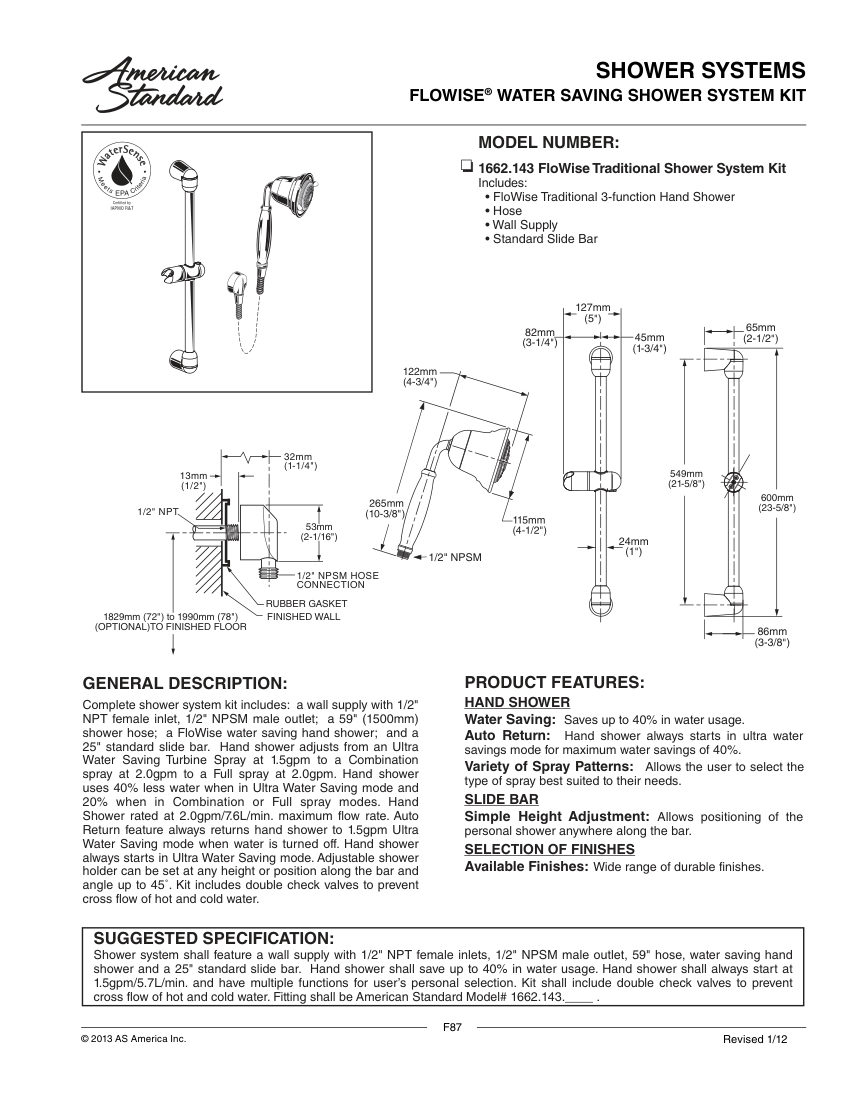

American Standard 1662143 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662143
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662143
DescriptionAmerican Standard Shower System Kit (Shower Systems). Model 1662.143. 3-function hand shower with Ultra Water Saving, Combination, and Full spray modes; Saves up to 40% water usage in Ultra Water Saving mode; Auto Return feature resets to 1.5 GPM mode when water is off; Includes double check valves to prevent cross flow. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet
End connection1/2" NPSM hose connection
Flow Rate1.5 GPM to 2.0 GPM
MountingWall supply with 25" standard slide bar
DimensionsSlide bar: 25" (635mm)
Hose59" (1500mm)
ComplianceLocal code.

Also cataloged as: 1662143.002, 1662143.224, 1662143.295
