American StandardCommercial Shower System with Tub Spout, 1.5 gpm1662212

American Standard Commercial Shower System Kit (FloWise Commercial Shower Systems). Model 1662.212. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature; Cast brass valve body with 47 mm ceramic disc cartridge

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662212.pdfData sheet

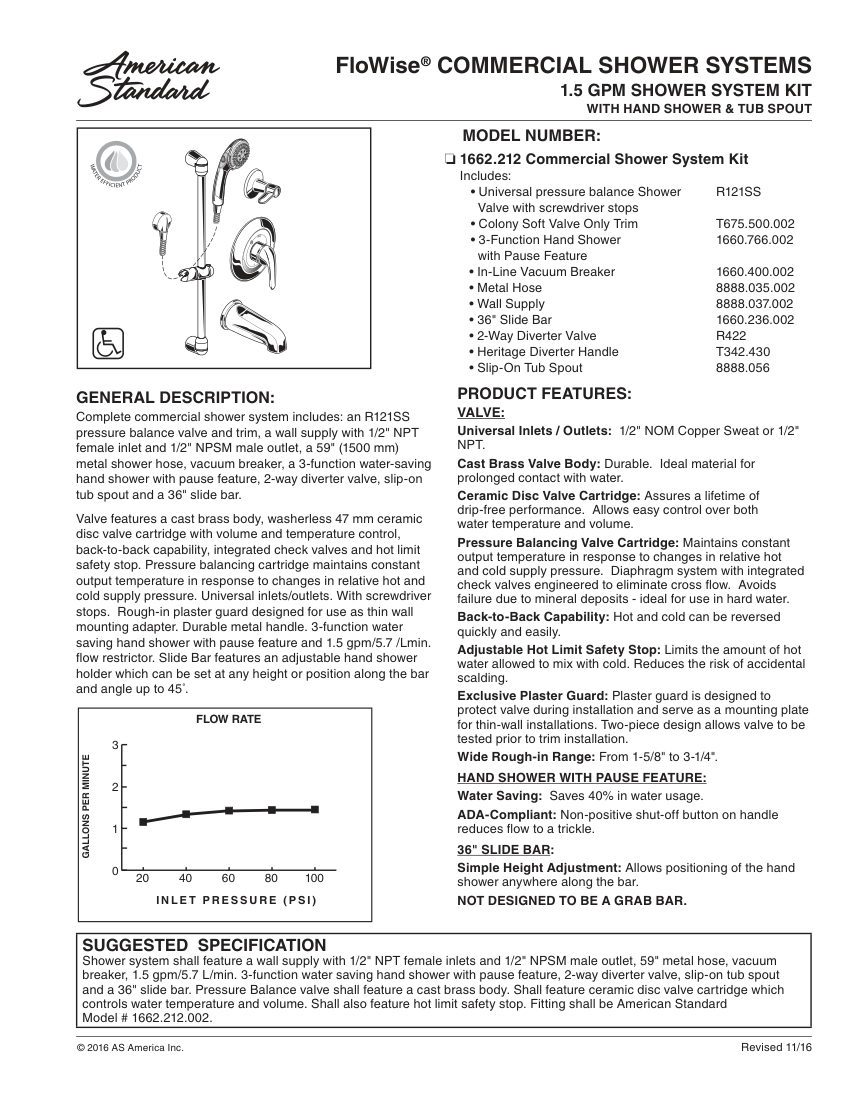

American Standard 1662212 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662212
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662212
DescriptionAmerican Standard Commercial Shower System Kit (FloWise Commercial Shower Systems). Model 1662.212. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature; Cast brass valve body with 47 mm ceramic disc cartridge
Universal inlets/outlets1/2" NOM Copper Sweat or 1/2" NPT. material: Cast Brass
Connection size1/2" NPT
End connection1/2" NPT female inlet, 1/2" NPSM male outlet
Flow Rate1.5 gpm / 5.7 L/min
MountingThin wall mounting adapter
Dimensions59" (1500 mm) metal hose, 36" slide bar.

Also cataloged as: 1662212.002
