DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardCommercial Shower System with Slide-Grab Bar, 1.5 gpm1662213

American Standard Shower System Kit (Commercial Shower System). Model 1662.213. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature; Equipped with 2-way diverter valve and Heritage diverter handle; Cast brass valve body with ceramic disc cartridge. material: Cast Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662213.pdfData sheet

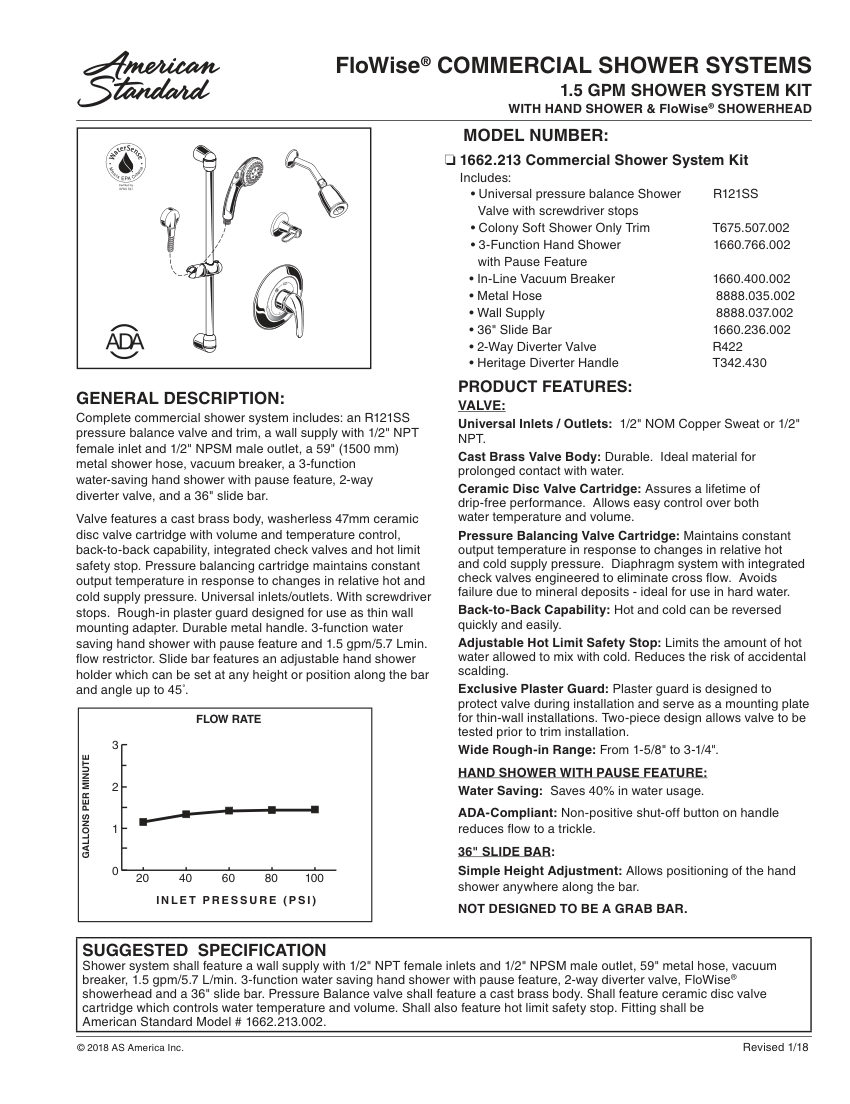

American Standard 1662213 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662213
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662213
DescriptionAmerican Standard Shower System Kit (Commercial Shower System). Model 1662.213. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature; Equipped with 2-way diverter valve and Heritage diverter handle; Cast brass valve body with ceramic disc cartridge. material: Cast Brass
Connection size1/2" NOM Copper Sweat or 1/2" NPT
End connectionUniversal Inlets / Outlets
Flow Rate1.5 gpm / 5.7 L/min
MountingThin wall mounting adapter
Dimensions36" Slide Bar, 59" Metal Hose.

Also cataloged as: 1662213.002
