American StandardCommercial Shower System with Showerhead & Tub Spout, 1.5 gpm1662214

American Standard Shower System Kit (Commercial Shower Systems). Model 1662.214. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature; Cast brass valve body with ceramic disc cartridge

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662214.pdfData sheet

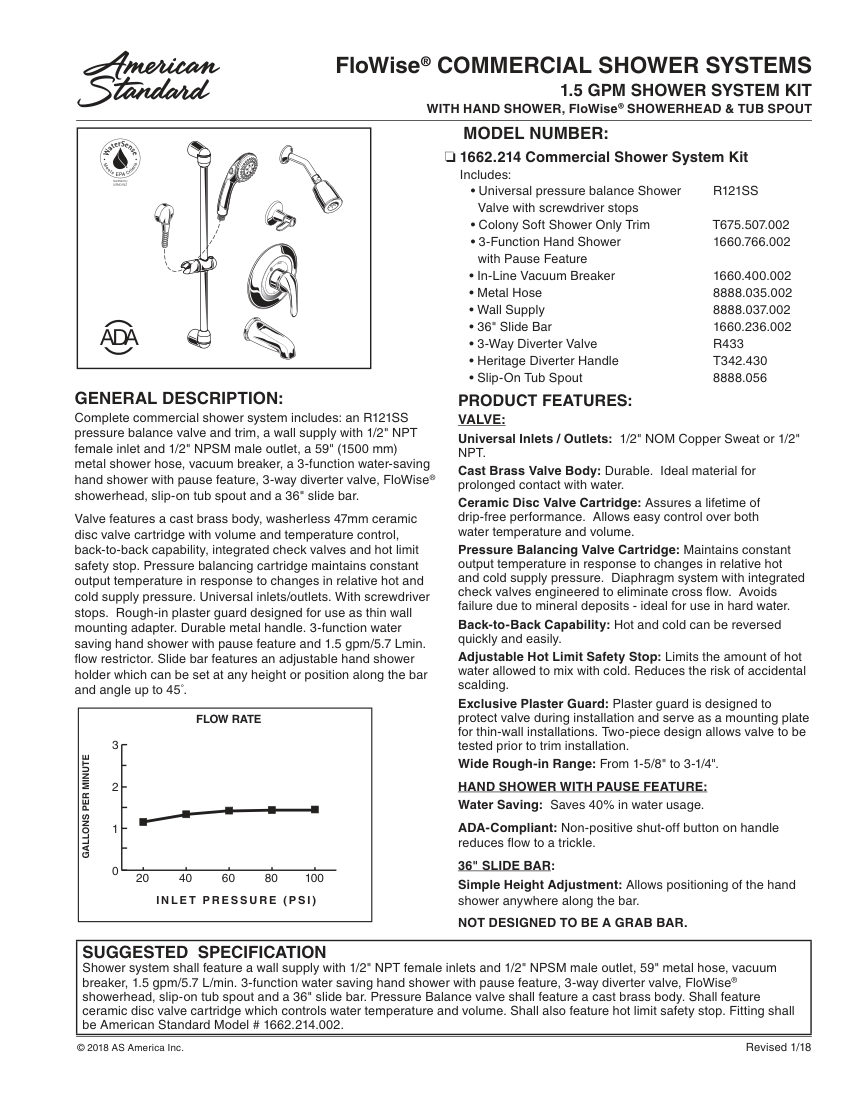

American Standard 1662214 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662214
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662214
DescriptionAmerican Standard Shower System Kit (Commercial Shower Systems). Model 1662.214. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature; Cast brass valve body with ceramic disc cartridge
Universal inlets/outlets1/2" NOM Copper Sweat or 1/2" NPT. material: Cast Brass
Connection size1/2" NPT
End connection1/2" NPT female inlet, 1/2" NPSM male outlet
Flow Rate1.5 gpm / 5.7 L/min
MountingThin wall mounting adapter
Dimensions59" (1500 mm) hose, 36" slide bar.

Also cataloged as: 1662214.002
