DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardCommercial Shower System, 2.5 gpm1662221

American Standard Shower System Kit (Commercial Shower System). Model 1662.221. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature and 1.5 gpm flow restrictor; Cast brass valve body with 47 mm ceramic disc cartridge; Universal inlets/outlets compatible with 1/2" NOM Copper Sweat or 1/2" NPT. material: Cast Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662221.pdfData sheet

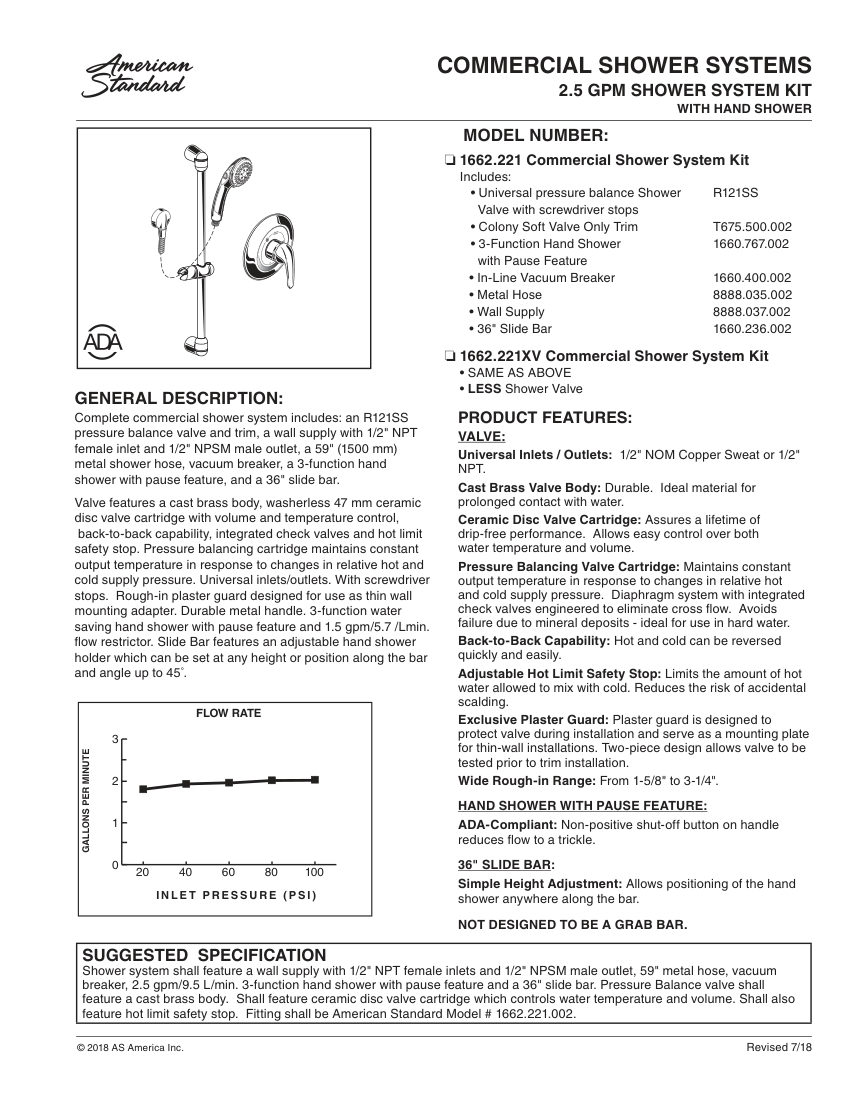

American Standard 1662221 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662221
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662221
DescriptionAmerican Standard Shower System Kit (Commercial Shower System). Model 1662.221. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature and 1.5 gpm flow restrictor; Cast brass valve body with 47 mm ceramic disc cartridge; Universal inlets/outlets compatible with 1/2" NOM Copper Sweat or 1/2" NPT. material: Cast Brass
Connection size1/2" NPT
End connection1/2" NPT female inlet, 1/2" NPSM male outlet
Flow Rate2.5 gpm
MountingThin wall
Dimensions36" slide bar, 59" metal hose.

Also cataloged as: 1662221.002
