American StandardCommercial Shower System with Showerhead & Tub Spout, 2.5 gpm1662224

American Standard Shower System Kit (Commercial Shower Systems). Model 1662.224. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature and 1.5 gpm flow restrictor; Cast brass valve body with 47 mm ceramic disc cartridge; Includes 3-way diverter valve and slip-on tub spout. material: Cast Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662224.pdfData sheet

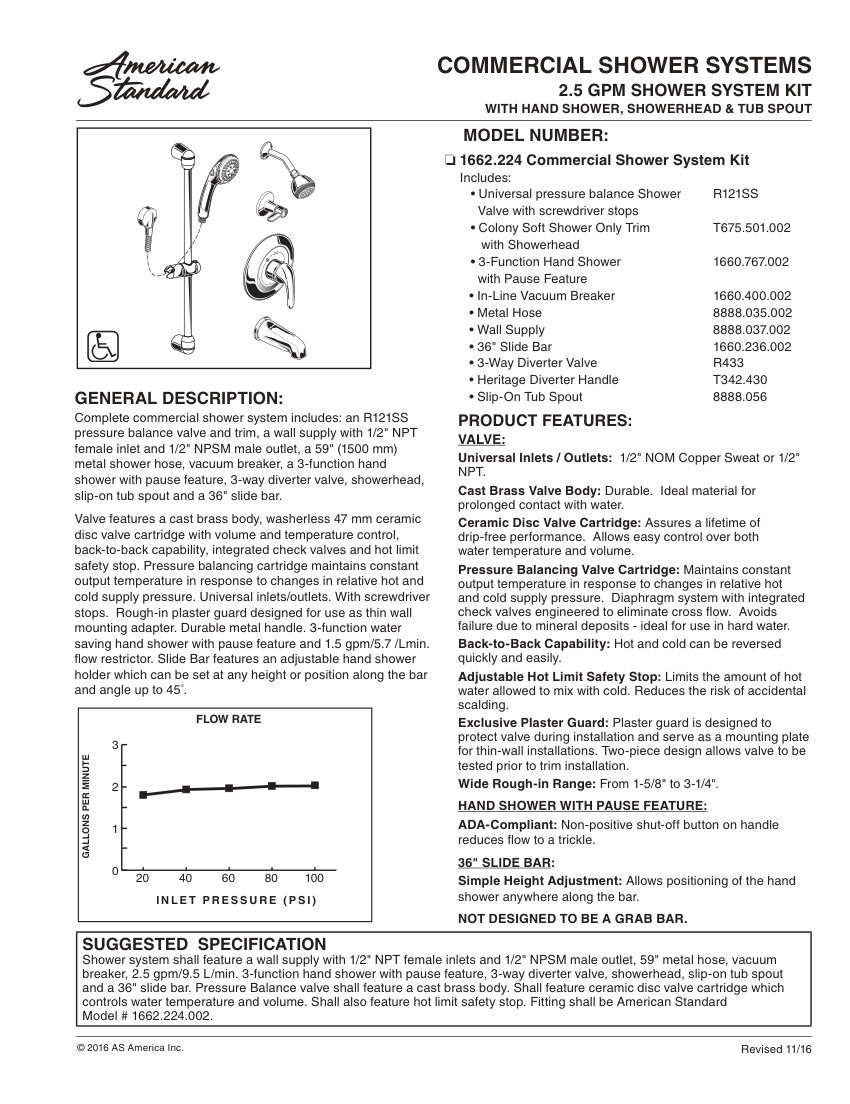

American Standard 1662224 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662224
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662224
DescriptionAmerican Standard Shower System Kit (Commercial Shower Systems). Model 1662.224. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature and 1.5 gpm flow restrictor; Cast brass valve body with 47 mm ceramic disc cartridge; Includes 3-way diverter valve and slip-on tub spout. material: Cast Brass
Connection size1/2" NPT
End connection1/2" NPT female inlet, 1/2" NPSM male outlet
Flow Rate2.5 gpm
MountingThin wall
Dimensions36" slide bar, 59" metal hose.

Also cataloged as: 1662224.002
