American StandardCommercial Shower System with Diverter Tub Spout, 2.5 gpm1662225

American Standard Shower System Kit (Commercial Shower Systems). Model 1662.225. Includes R121SS pressure balance valve and Colony Soft Valve Only Trim; Features 3-function hand shower with pause feature and 1.5 gpm flow restrictor; Cast brass valve body with 47 mm ceramic disc cartridge; Includes slip-on diverter tub spout and in-line vacuum breaker. material: Cast Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662225.pdfData sheet

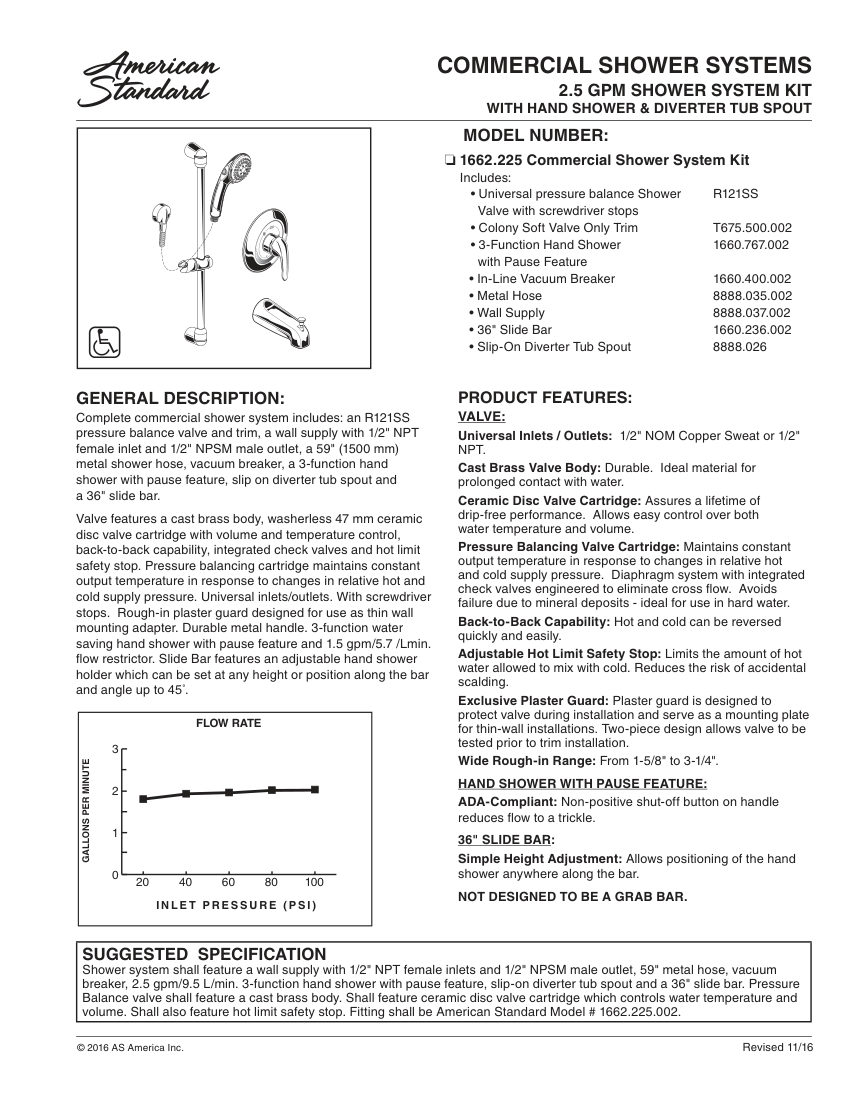

American Standard 1662225 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662225
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662225
DescriptionAmerican Standard Shower System Kit (Commercial Shower Systems). Model 1662.225. Includes R121SS pressure balance valve and Colony Soft Valve Only Trim; Features 3-function hand shower with pause feature and 1.5 gpm flow restrictor; Cast brass valve body with 47 mm ceramic disc cartridge; Includes slip-on diverter tub spout and in-line vacuum breaker. material: Cast Brass
Connection size1/2" NPT
End connection1/2" NPT female inlet, 1/2" NPSM male outlet
Flow Rate2.5 gpm
MountingThin wall
Dimensions59" metal hose, 36" slide bar.

Also cataloged as: 1662225.002
