DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American Standard2.5 gpm/9.5 L/min 3-Function Slide Bar Kit1662551

American Standard Rain Shower System Kit (Shower Systems). Model 1662.551. Includes Rain Hand Shower, Hose, Wall Supply, and Standard Slide Bar; 3-Function spray patterns: Soft Rain, Hard Rain, Massage; Features double check valves to prevent cross flow; Adjustable shower holder with 45° angle capability. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662551.pdfData sheet

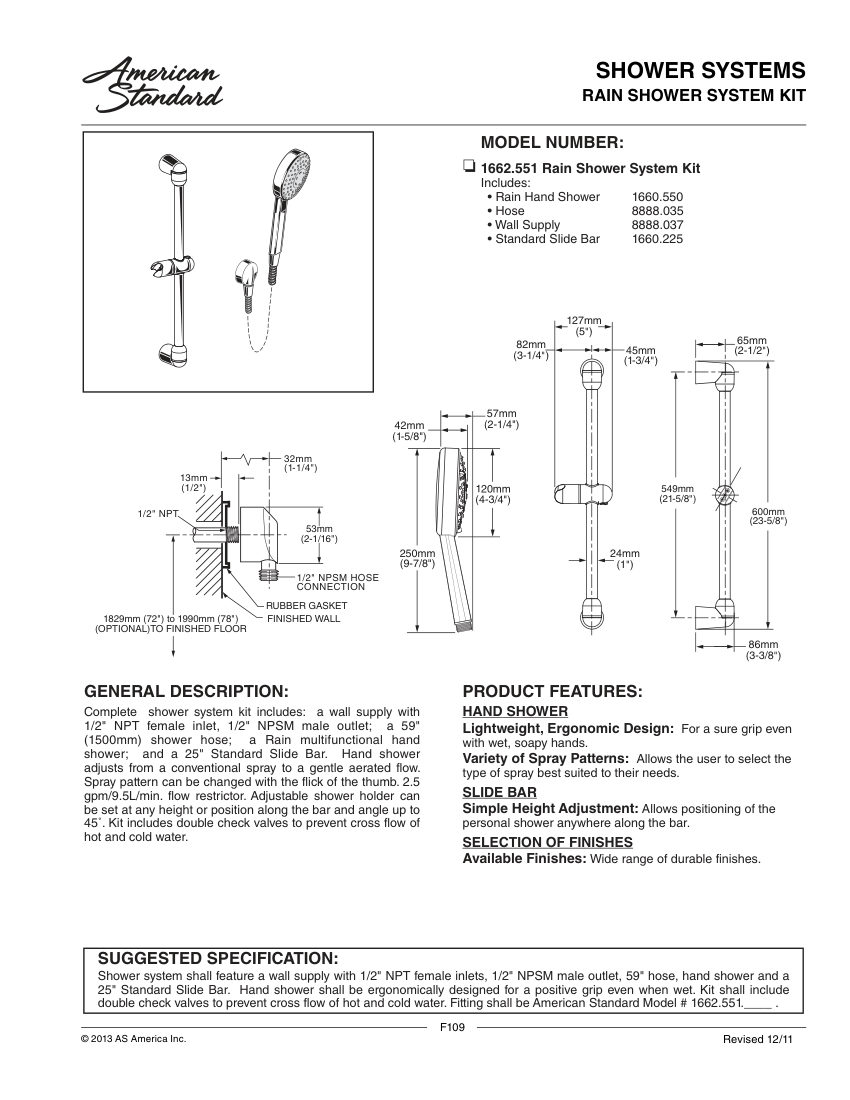

American Standard 1662551 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662551
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662551
DescriptionAmerican Standard Rain Shower System Kit (Shower Systems). Model 1662.551. Includes Rain Hand Shower, Hose, Wall Supply, and Standard Slide Bar; 3-Function spray patterns: Soft Rain, Hard Rain, Massage; Features double check valves to prevent cross flow; Adjustable shower holder with 45° angle capability. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet
End connection1/2" NPSM hose connection
Flow Rate2.5 gpm/9.5 L/min
FinishPVD
MountingWall supply with standard slide bar
DimensionsSlide bar height 1829mm (72") to 1990mm (78").

Also cataloged as: 1662551.002, 1662551.295
