American StandardComplete 3-Function Hand Shower System Kit1662600

American Standard Shower System Kit (Shower Systems). Model 1662.600. Includes Soft Hand Shower, Hose, Wall Supply, and Standard Slide Bar; 3-Function spray pattern adjustable with thumb; Ergonomic lightweight hand shower design; Includes double check valves to prevent cross flow. connectionSize: 1/2" NPT

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662600.pdfData sheet

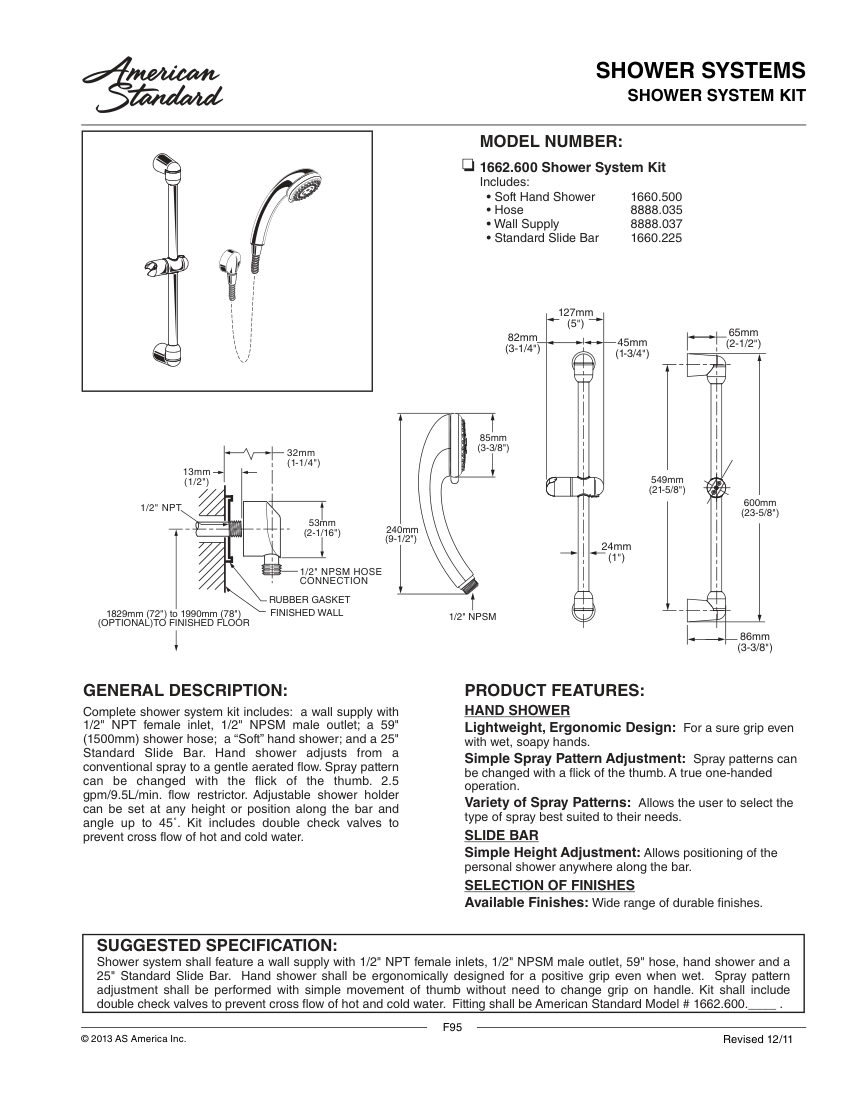

American Standard 1662600 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662600
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662600
DescriptionAmerican Standard Shower System Kit (Shower Systems). Model 1662.600. Includes Soft Hand Shower, Hose, Wall Supply, and Standard Slide Bar; 3-Function spray pattern adjustable with thumb; Ergonomic lightweight hand shower design; Includes double check valves to prevent cross flow. connectionSize: 1/2" NPT
End connection1/2" NPT female inlet, 1/2" NPSM male outlet
Flow Rate2.5 gpm/9.5L/min
MountingWall supply with slide bar
DimensionsSlide bar 25" (635mm), Hose 59" (1500mm)
ComplianceASME A112.18.1, CSA 125.

Also cataloged as: 1662600.002, 1662600.295
