DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardComplete Valve Hand Shower System Kit1662601

American Standard Complete Valve Hand Shower System Kit (Shower Systems). Model 1662.601. Includes Colony Valve Trim Kit, Rough Pressure Balance Valve, Fixed Handshower, Hose, Wall Supply, Slide Bar, and Vacuum Breaker; Washerless ceramic disc valve cartridge with back-to-back capability; Integrated check valves and hot limit safety stop; Single function handshower with 2.5 gpm flow restrictor. material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662601.pdfData sheet

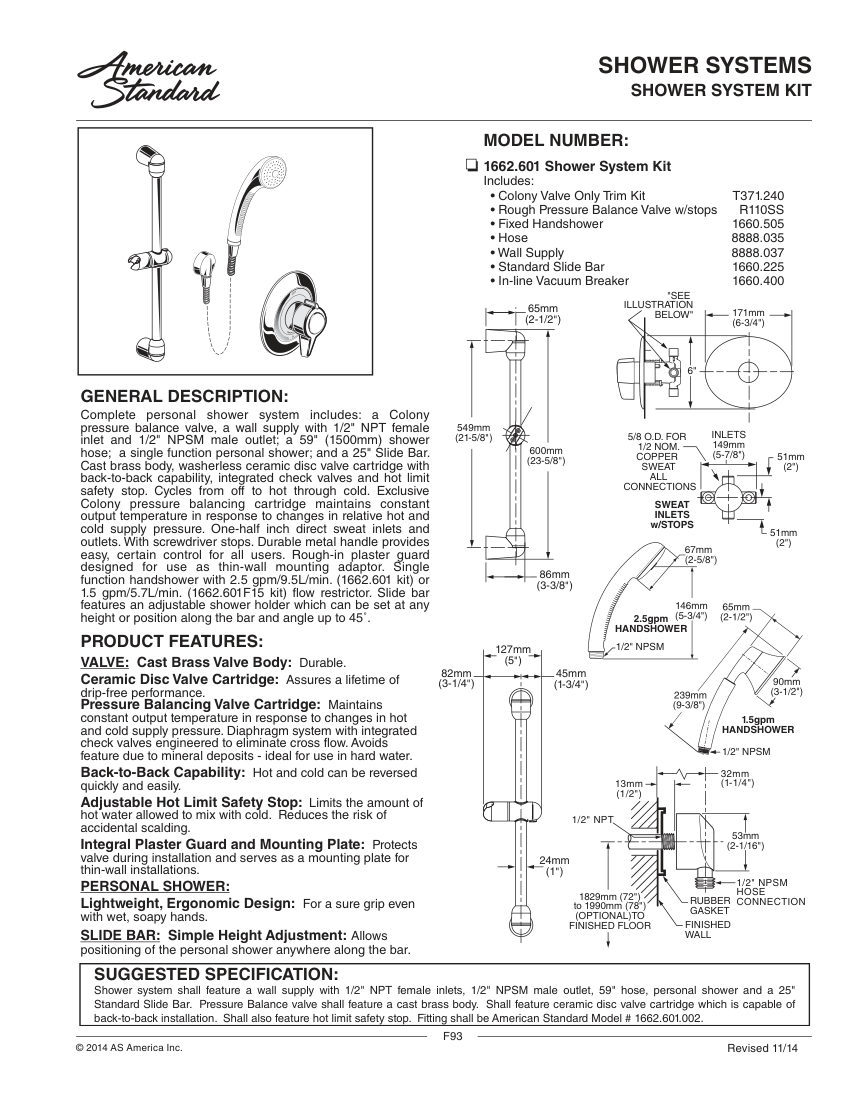

American Standard 1662601 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662601
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662601
DescriptionAmerican Standard Complete Valve Hand Shower System Kit (Shower Systems). Model 1662.601. Includes Colony Valve Trim Kit, Rough Pressure Balance Valve, Fixed Handshower, Hose, Wall Supply, Slide Bar, and Vacuum Breaker; Washerless ceramic disc valve cartridge with back-to-back capability; Integrated check valves and hot limit safety stop; Single function handshower with 2.5 gpm flow restrictor. material: Cast brass
Connection size1/2" NPT female inlet, 1/2" NPSM male outlet
End connectionSweat inlets with stops
Flow Rate2.5 gpm / 9.5 L/min
MountingRough-in plaster guard / thin-wall mo

Also cataloged as: 1662601.002
