DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American Standard25-In. Single-Function 1.5 GPM Shower System Kit1662604

American Standard Shower System Kit (Shower Systems). Model 1662.604. Includes water saving soft hand shower, hose, wall supply, and slide bar; Saves up to 40% in water usage; Features double check valves to prevent cross flow; Hand shower adjusts spray pattern with thumb. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662604.pdfData sheet

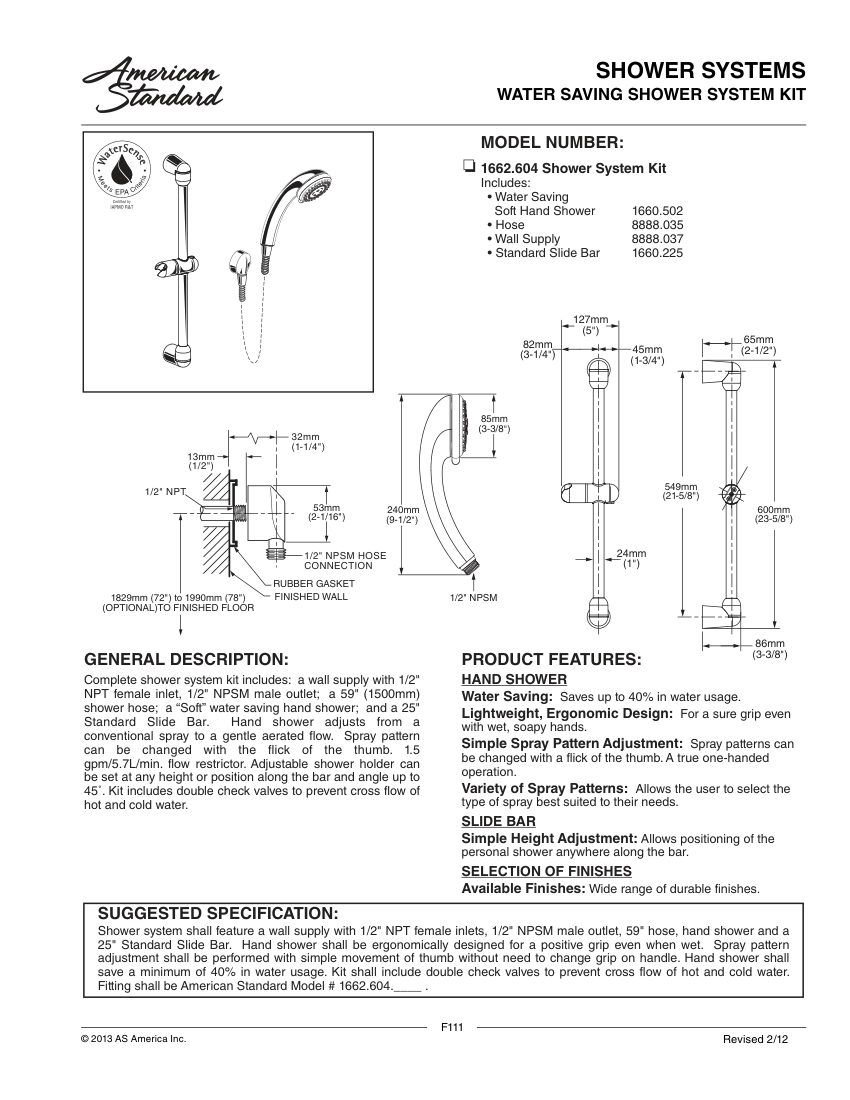

American Standard 1662604 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662604
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662604
DescriptionAmerican Standard Shower System Kit (Shower Systems). Model 1662.604. Includes water saving soft hand shower, hose, wall supply, and slide bar; Saves up to 40% in water usage; Features double check valves to prevent cross flow; Hand shower adjusts spray pattern with thumb. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet
End connection1/2" NPSM hose connection
Flow Rate1.5 GPM / 5.7 L/min
MountingWall supply with 25" Standard Slide Bar
DimensionsSlide Bar: 25" (635mm)
Hose59" (1500mm)
ComplianceASME A112.18.1, CSA 125.

Also cataloged as: 1662604.002, 1662604.295
