DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American StandardTraditional 1.8 gpm/6.8 L/min Single Function Slide Bar Kit1662607

American Standard Slide Bar Shower Kit (Shower Kit). Model 1662607. Includes traditional handheld shower, 30" slide bar, 60" hose, and wall supply; WaterSense certified with 1.8 gpm flow rate; Features pressure compensating flow control device; Includes double check valves to prevent cross flow. material: All metal slide bar

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662607.pdfData sheet

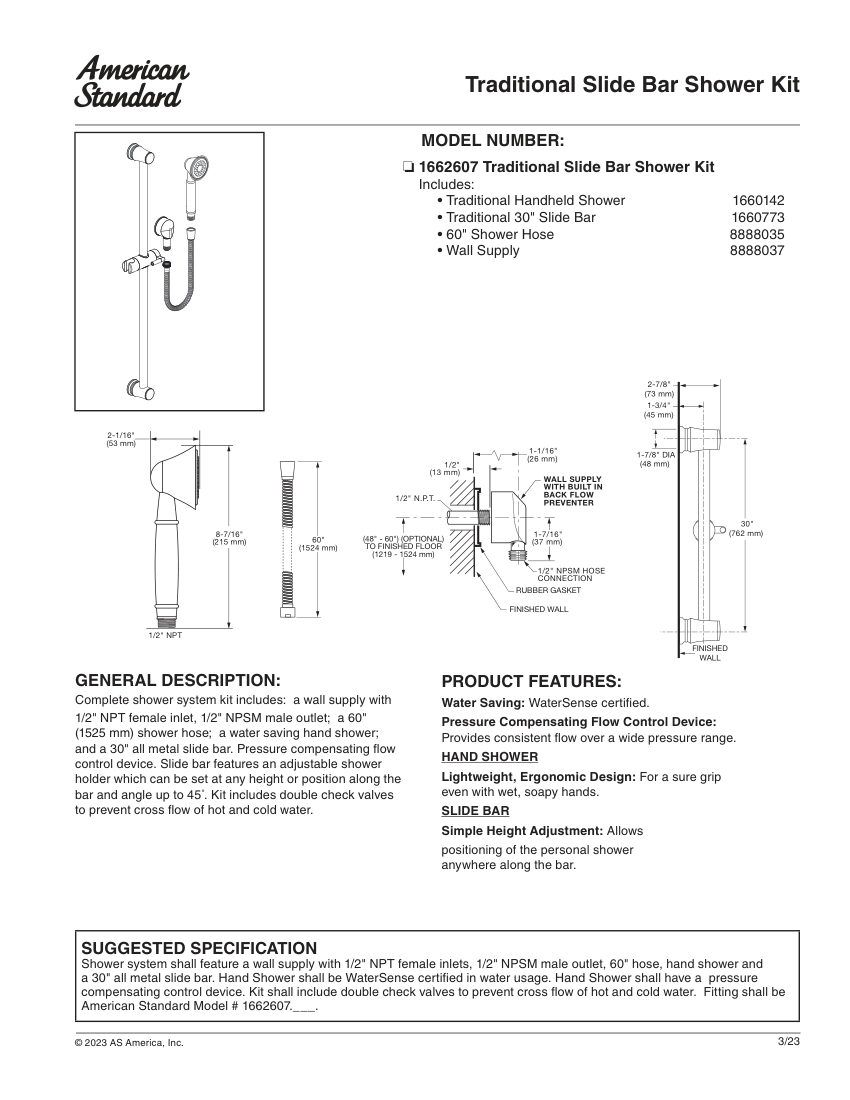

American Standard 1662607 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662607
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662607
DescriptionAmerican Standard Slide Bar Shower Kit (Shower Kit). Model 1662607. Includes traditional handheld shower, 30" slide bar, 60" hose, and wall supply; WaterSense certified with 1.8 gpm flow rate; Features pressure compensating flow control device; Includes double check valves to prevent cross flow. material: All metal slide bar
Connection size1/2" NPT female inlet, 1/2" NPSM male outlet
End connection1/2" NPSM hose connection
Flow Rate1.8 gpm / 6.8 L/min
FinishPolished, Brushed, Legacy, Matte, Cool
MountingWall supply with built-in back flow preventer.

Also cataloged as: 1662607.GN0, 1662607.002, 1662607.295, 1662607.013, 1662607.243, 1662607.278
