DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardContemporary Hand Shower Kit 1.8 gpm/6.8 L/min1662609

American Standard Hand Shower Kit (Shower Systems). Model 1662609. Includes hand shower, hose, wall union, and wall bracket; Water saving design reduces usage by up to 20%; Features double check valves to prevent cross flow; Lightweight ergonomic hand shower design. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662609.pdfData sheet

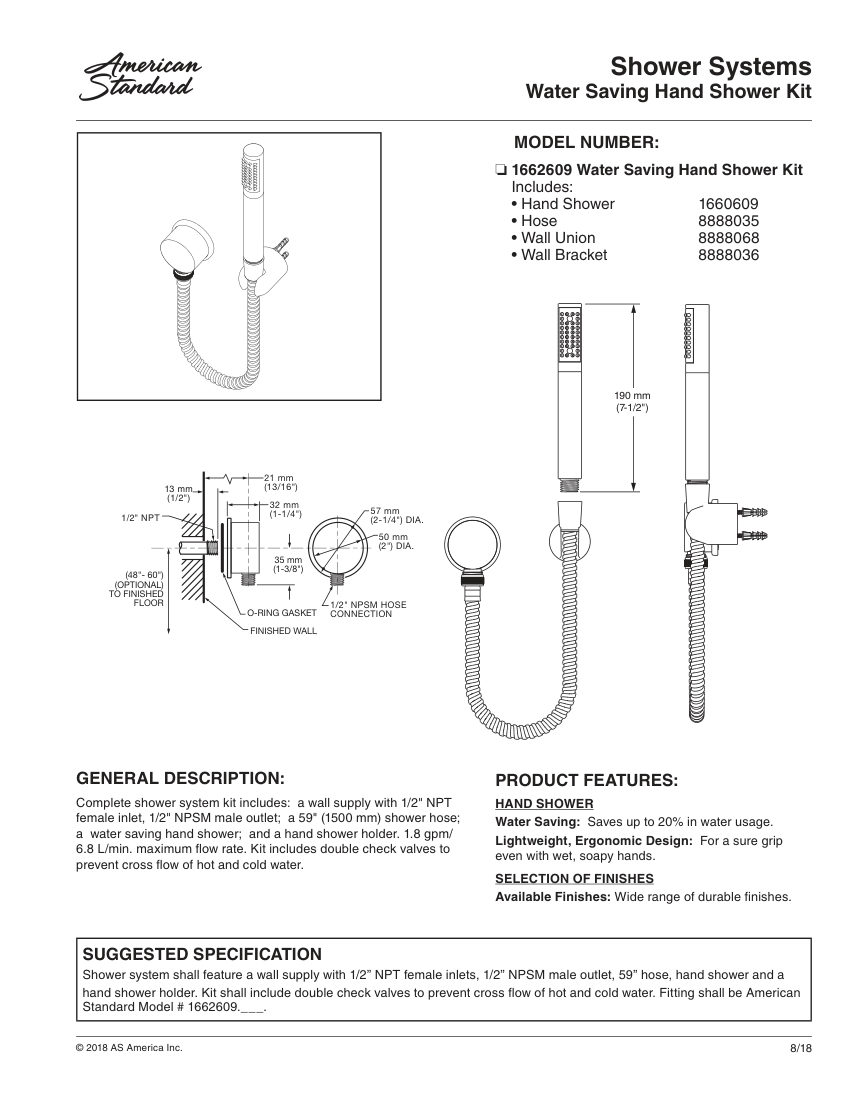

American Standard 1662609 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662609
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662609
DescriptionAmerican Standard Hand Shower Kit (Shower Systems). Model 1662609. Includes hand shower, hose, wall union, and wall bracket; Water saving design reduces usage by up to 20%; Features double check valves to prevent cross flow; Lightweight ergonomic hand shower design. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet
End connection1/2" NPSM hose connection
Flow Rate1.8 gpm/6.8 L/min
FinishPolished Chrome, Matte Black, Brushed Nickel
MountingWall supply with wall bracket
DimensionsHose length 59" (1500 mm).

Also cataloged as: 1662609.002, 1662609.243, 1662609.295
