American Standard30-Inch 1.8 gpm/6.8 L/min 3-Function Slide Bar Kit1662647

American Standard Shower System Kit (Shower Systems). Model 1662.647. Includes water saving 3-function hand shower, hose, wall supply, and 30" slide bar; Saves up to 30% in water usage; Features double check valves to prevent back flow; Hand shower offers full spray, full/massage, and pulsating massage patterns. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662647.pdfData sheet

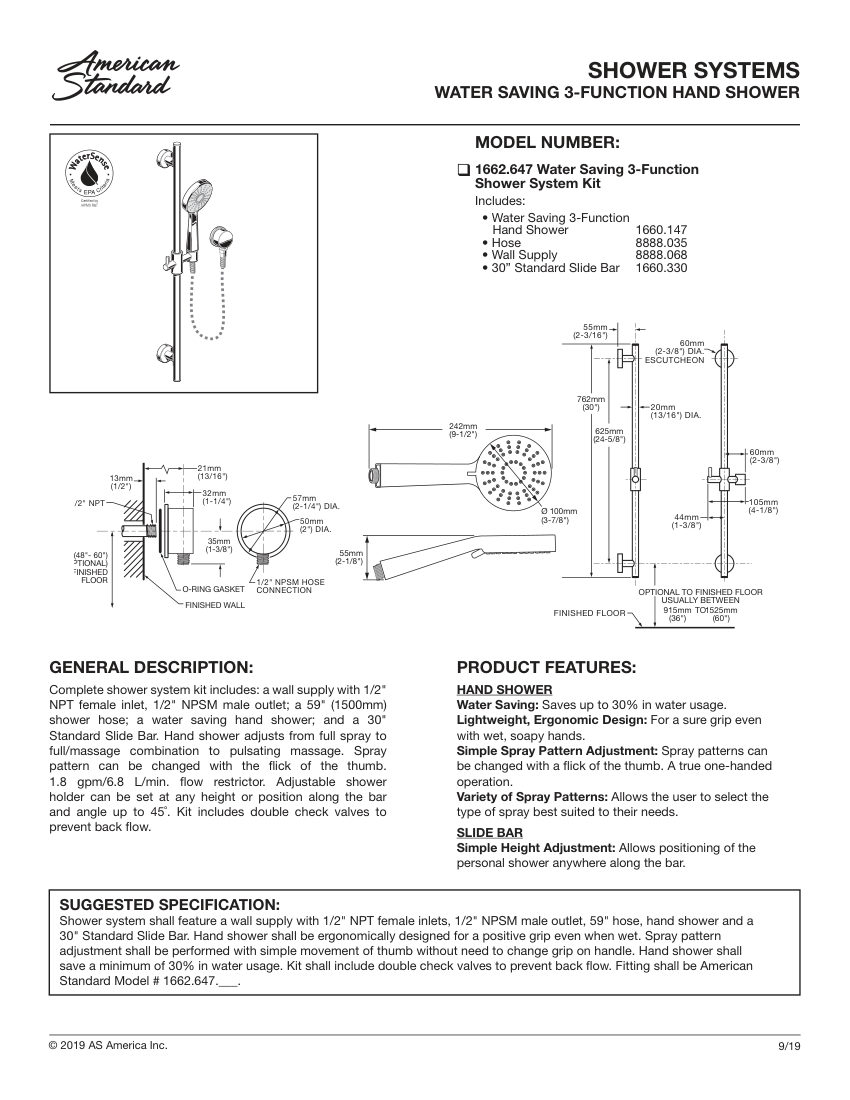

American Standard 1662647 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662647
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662647
DescriptionAmerican Standard Shower System Kit (Shower Systems). Model 1662.647. Includes water saving 3-function hand shower, hose, wall supply, and 30" slide bar; Saves up to 30% in water usage; Features double check valves to prevent back flow; Hand shower offers full spray, full/massage, and pulsating massage patterns. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet
End connection1/2" NPT
Flow Rate1.8 gpm/6.8 L/min
MountingWall supply with 30" Standard Slide Bar
Dimensions30" (762mm) slide bar length
ComplianceMeets or exceeds applicable codes and standards.

Also cataloged as: 1662647.002
