DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American StandardFloWise Water Saving Shower System Kit1662741

American Standard Water Saving Shower System Kit (Shower Systems). Model 1662.741. Saves 40% in water usage compared to standard 2.5gpm showers; Includes double check valves to prevent cross flow of hot and cold water; Features pressure compensating flow control device; Hand shower uses Turbine Technology with single drenching spray function. connectionSize: 1/2" NPT

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662741.pdfData sheet

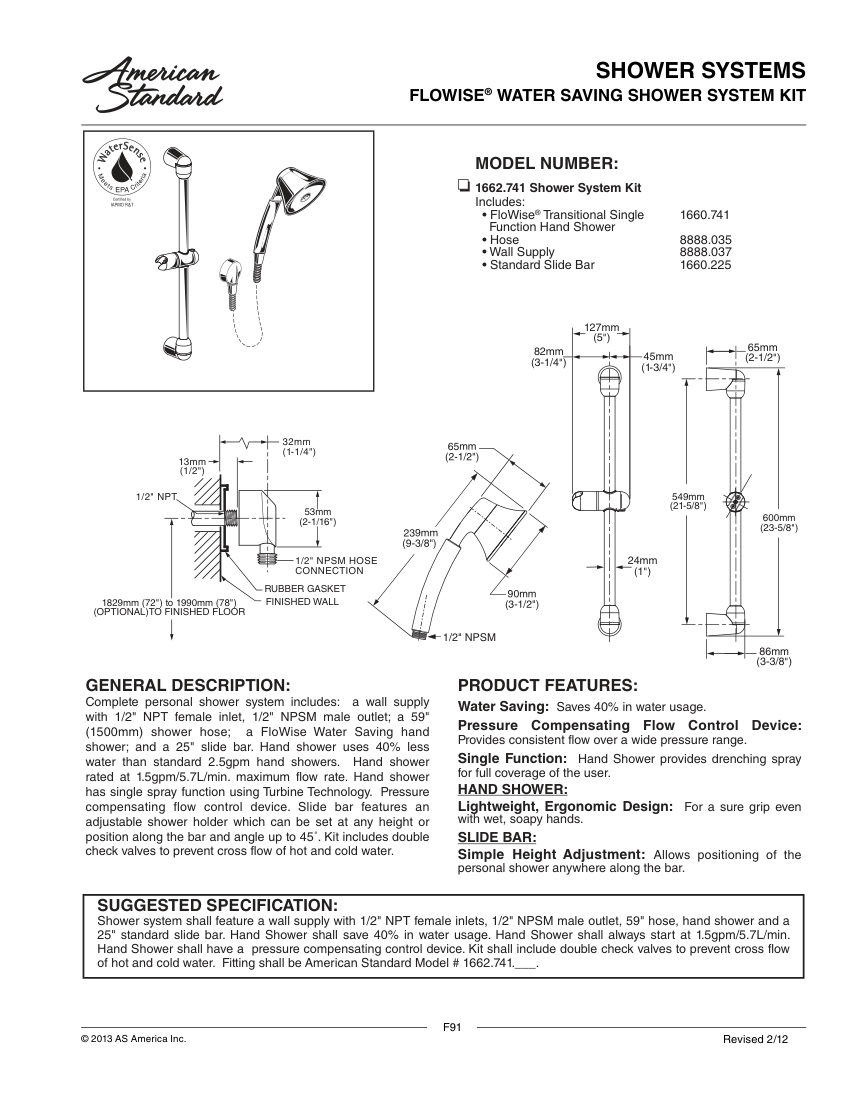

American Standard 1662741 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662741
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662741
DescriptionAmerican Standard Water Saving Shower System Kit (Shower Systems). Model 1662.741. Saves 40% in water usage compared to standard 2.5gpm showers; Includes double check valves to prevent cross flow of hot and cold water; Features pressure compensating flow control device; Hand shower uses Turbine Technology with single drenching spray function. connectionSize: 1/2" NPT
End connection1/2" NPT female inlet, 1/2" NPSM male outlet
Flow Rate1.5gpm/5.7L/min
MountingWall supply with slide bar
DimensionsSlide bar 25" (635mm), Hose 59" (1500mm)
ComplianceASME A112.18.1, CSA 125.

Also cataloged as: 1662741.002
