DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American Standard30-In. 3-Function 2.0 GPM Round Shower System Kit1662801

American Standard Shower System Kit (Shower Systems). Model 1662.801. Includes 3-function hand shower, 59" hose, wall supply, and 30" slide bar; Water saving design reduces usage by up to 20%; Features double check valves to prevent cross flow; Ergonomic hand shower with thumb-operated spray pattern adjustment. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662801.pdfData sheet

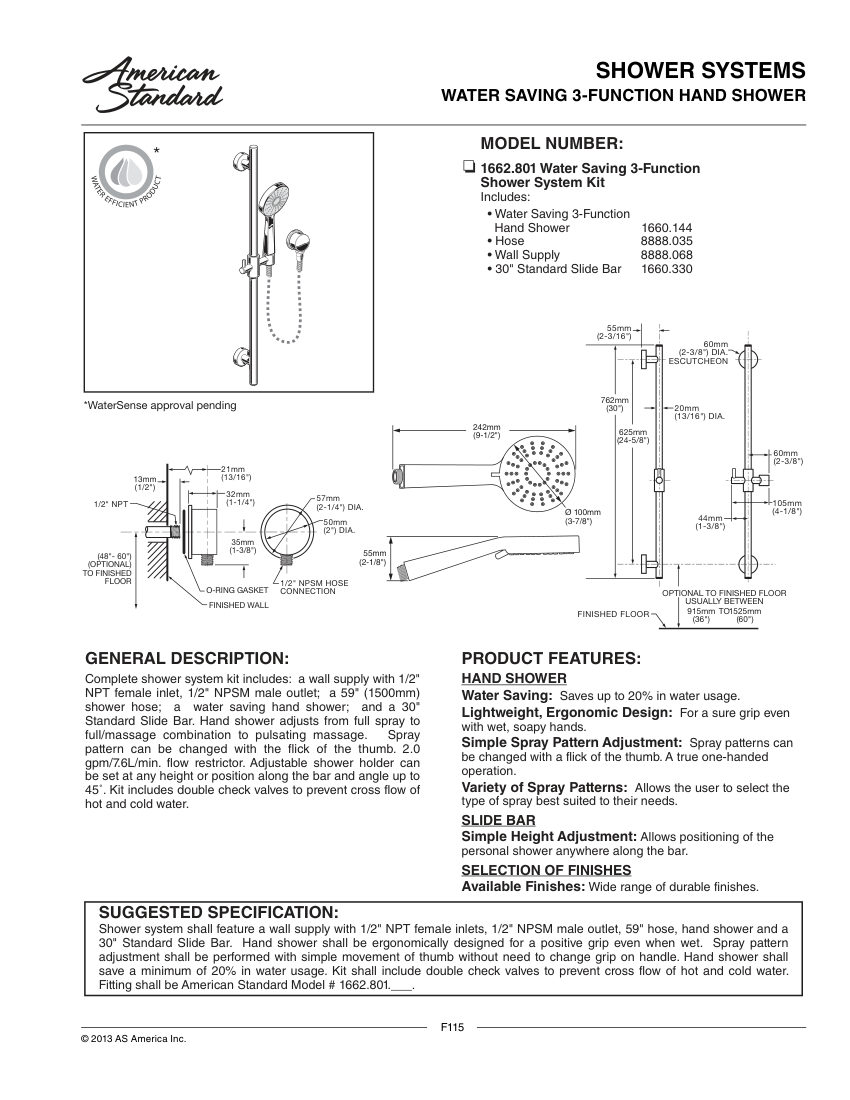

American Standard 1662801 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662801
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662801
DescriptionAmerican Standard Shower System Kit (Shower Systems). Model 1662.801. Includes 3-function hand shower, 59" hose, wall supply, and 30" slide bar; Water saving design reduces usage by up to 20%; Features double check valves to prevent cross flow; Ergonomic hand shower with thumb-operated spray pattern adjustment. connectionSize: 1/2" NPT female inlet, 1/2" NPSM male outlet
End connection1/2" NPSM hose connection
Flow Rate2.0 gpm / 7.6 L/min
MountingWall supply with 30" Standard Slide Bar
DimensionsSlide Bar: 762mm (30")
Hose1500mm (59")
ComplianceWaterSense approval pending.

Also cataloged as: 1662801.002
