American StandardCommercial Shower System with Slide-Grab Bar, 1.5 gpm1662SG211

American Standard Shower System Kit (Commercial Shower Systems). Model 1662SG.211. Includes universal pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature; Slide bar meets ANSI standard 250 lb. pull test; Wide rough-in range from 1-5/8" to 3-1/4". material: Cast Brass Valve Body, Stainless Steel Slide Bar

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662SG211.pdfData sheet

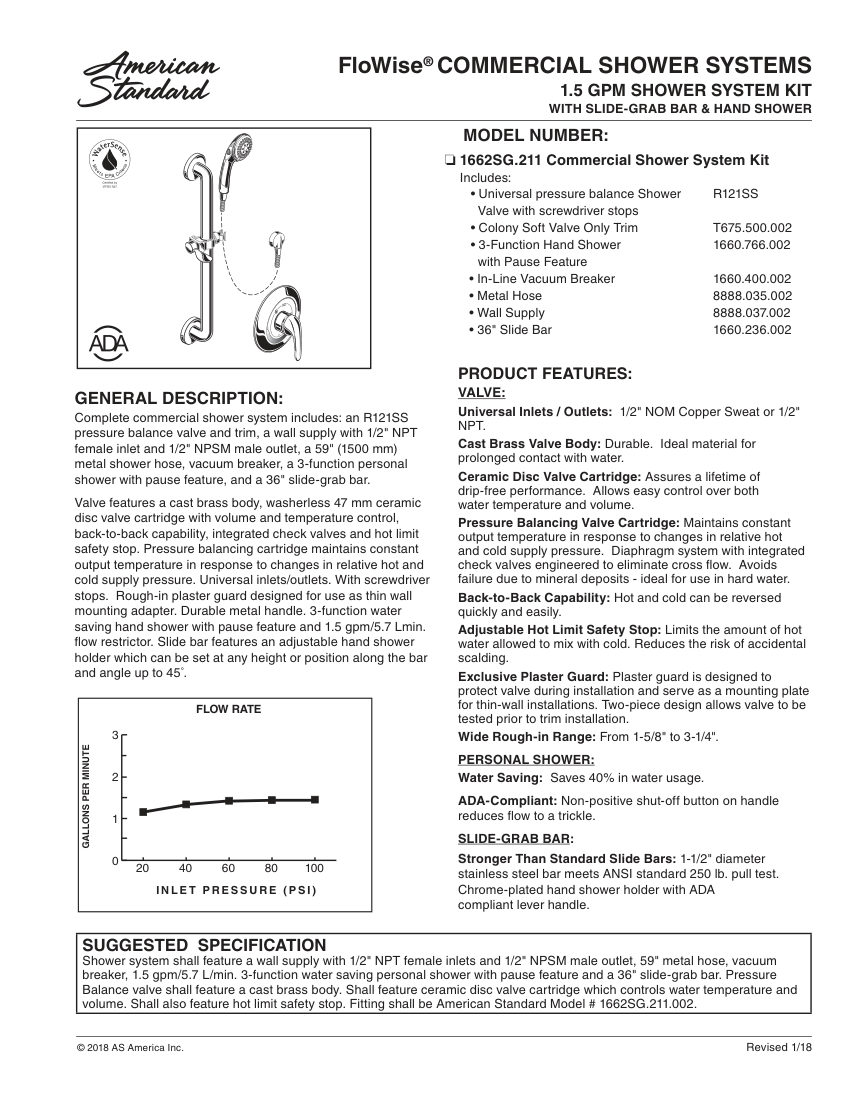

American Standard 1662SG211 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662SG211
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662SG211
DescriptionAmerican Standard Shower System Kit (Commercial Shower Systems). Model 1662SG.211. Includes universal pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature; Slide bar meets ANSI standard 250 lb. pull test; Wide rough-in range from 1-5/8" to 3-1/4". material: Cast Brass Valve Body, Stainless Steel Slide Bar
Connection size1/2" NOM Copper Sweat or 1/2" NPT
End connection1/2" NPT female inlet, 1/2" NPSM male outlet
Flow Rate1.5 gpm / 5.7 L/min
FinishChrome
MountingThin wall mounting adapter.

Also cataloged as: 1662SG211.002
