American StandardCommercial Shower System with Slide-Grab Bar & Tub Spout, 2.5 gpm1662SG222

American Standard Shower System Kit (Commercial Shower Systems). Model 1662SG.222. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature and 1.5 gpm restrictor; Cast brass valve body with 47 mm ceramic disc cartridge; 36" stainless steel slide-grab bar meets ANSI 250 lb. pull test. material: Cast Brass Valve Body, Stainless Steel Slide Bar

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1662SG222.pdfData sheet

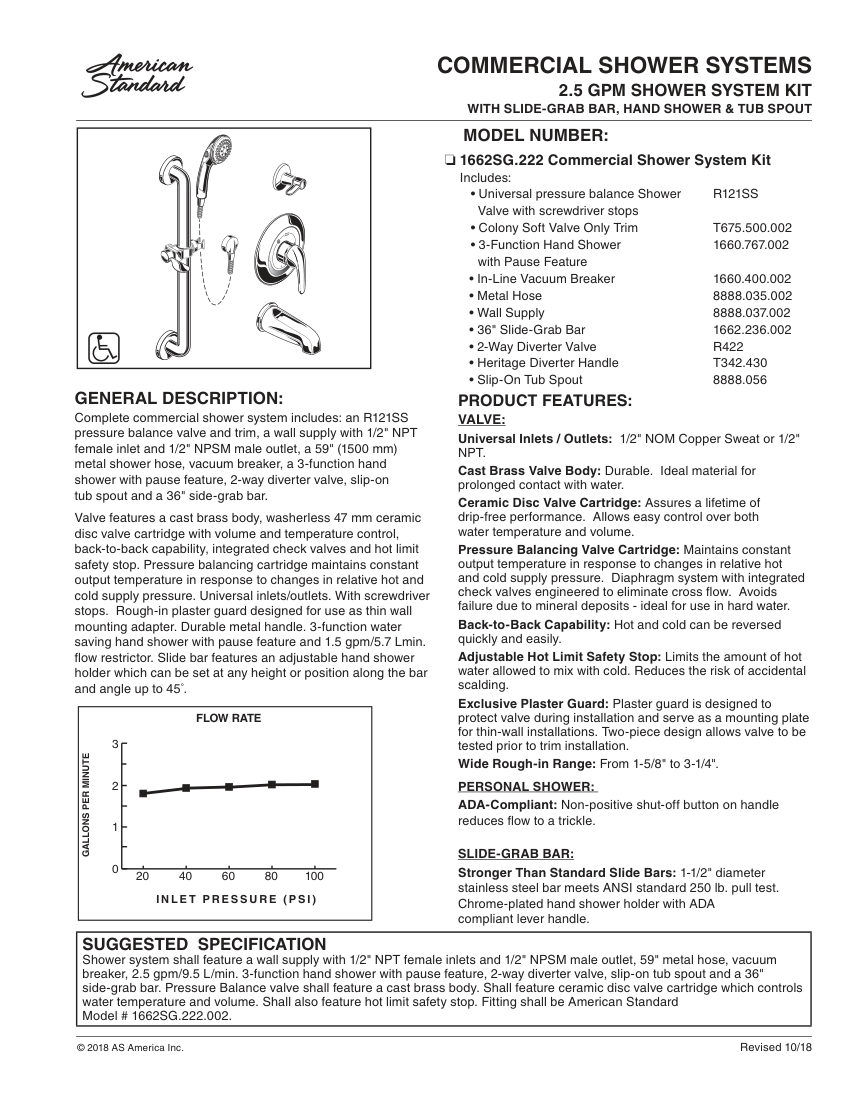

American Standard 1662SG222 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
1662SG222
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1662SG222
DescriptionAmerican Standard Shower System Kit (Commercial Shower Systems). Model 1662SG.222. Includes R121SS pressure balance valve with screwdriver stops; Features 3-function hand shower with pause feature and 1.5 gpm restrictor; Cast brass valve body with 47 mm ceramic disc cartridge; 36" stainless steel slide-grab bar meets ANSI 250 lb. pull test. material: Cast Brass Valve Body, Stainless Steel Slide Bar
Connection size1/2" NPT Female Inlet, 1/2" NPSM Male Outlet
End connectionNPT/NPSM
Flow Rate2.5 gpm
FinishChrome
MountingThin Wall / Plaster Guard.

Also cataloged as: 1662SG222.002
