American StandardSerin® Monoblock Bidet Fitting2064011
American Standard Bidet Fitting (Serin). Model 2064.011. Washerless 35mm ceramic disc valve cartridge; Integral hot limit safety stop; Metal Speed Connect Pop-up drain with 1-1/4" tail piece; Swivel spray aerator. material: Brass body, metal lever handle, stainless steel drain cable
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- American Standard
- Catalog no.
- 2064011
- Product type
- Water Closets & Bidets
- MasterFormat
- 22

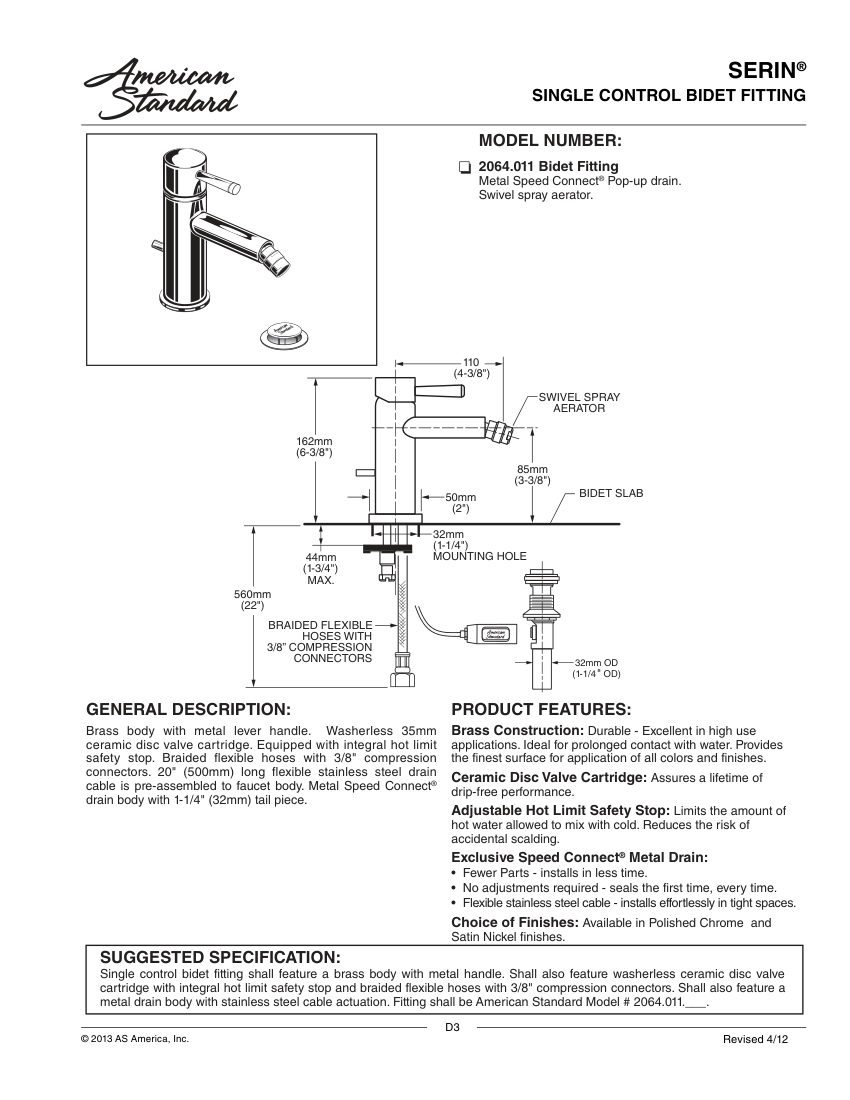

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 2064011 |
|---|---|
| Description | American Standard Bidet Fitting (Serin). Model 2064.011. Washerless 35mm ceramic disc valve cartridge; Integral hot limit safety stop; Metal Speed Connect Pop-up drain with 1-1/4" tail piece; Swivel spray aerator. material: Brass body, metal lever handle, stainless steel drain cable |
| Connection size | 3/8" compression connectors |
| End connection | 3/8" compression |
| Finish | Polished Chrome, PVD Satin Nickel |
| Mounting | 50mm (2") mounting hole |
| Dimensions | 162mm (6-3/8") height, 110mm (4-3/8") width, 560mm (22") hose length. |
Also cataloged as: 2064011.002, 2064011.295
