DIV 22 · PLUMBINGBATHTUBSCUT SHEET INDEXED

American StandardStratford 66 Inch by 32 Inch Bathtub2470102

American Standard Whirlpool and Bathing Pool (Whirlpool Bathtub). Model 2470.028WC / 2470.128WC / 2470.002 / 2470.102. Nominal dimensions: 66" x 32" x 20"

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF2470102.pdfData sheet

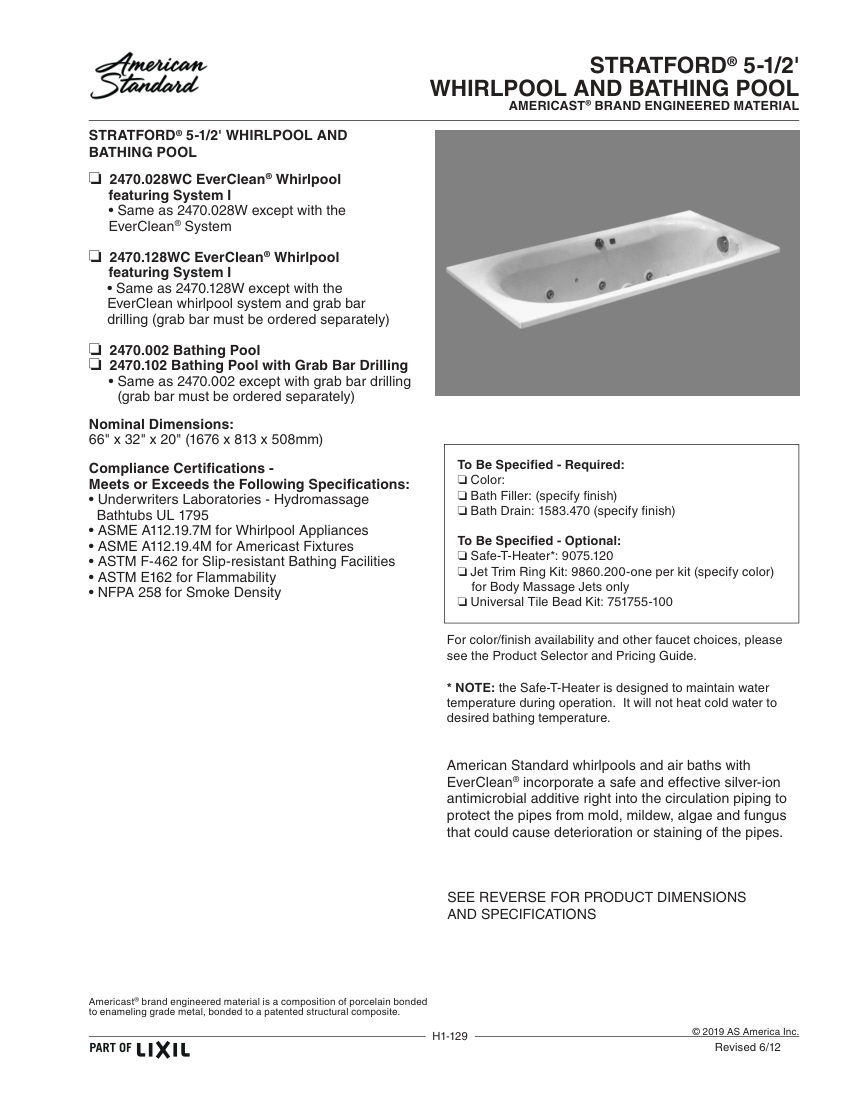

American Standard 2470102 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
2470102
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number2470102
DescriptionAmerican Standard Whirlpool and Bathing Pool (Whirlpool Bathtub). Model 2470.028WC / 2470.128WC / 2470.002 / 2470.102. Nominal dimensions: 66" x 32" x 20"
MaterialAmericast engineered material; Complies with UL 1795 and ASME A112.19.7M; EverClean system features silver-ion antimicrobial additive. material: Americast brand engineered material (porcelain bonded to enameling grade metal bonded to structural composite)
FinishTo be specified
MountingAbove or below floor line; Pier, Island, or Peninsula type
Dimensions66" x 32" x 20" (1676 x 813 x 508mm)
ComplianceUL 1795, ASME A112.1

Also cataloged as: 2470102.020, 2470102.222, 2470102.021
