DIV 22 · PLUMBINGLAVATORIES & SINKSCUT SHEET INDEXED

American StandardHampton 2-Handle High-Arc Bar Sink Faucet2770732

American Standard Two-Handle Bar Sink Faucet (Faucet). Model 2770.732. 1/4 turn washerless ceramic disc valve cartridges; 360-degree swivel brass spout; Lead free (≤ 0.25% total lead content); Includes brass escutcheon plate (6-1/8" L x 2-1/8" D). material: Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF2770732.pdfData sheet

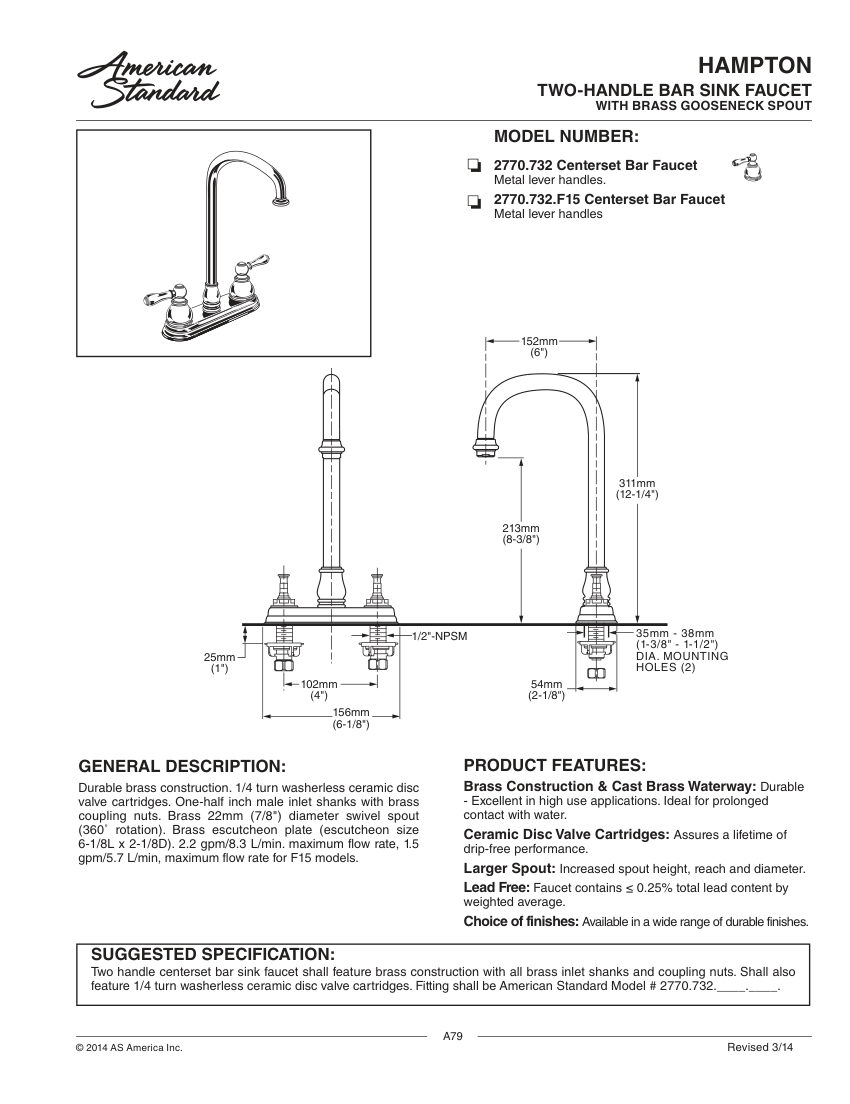

American Standard 2770732 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
2770732
Product type
Lavatories & Sinks
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number2770732
DescriptionAmerican Standard Two-Handle Bar Sink Faucet (Faucet). Model 2770.732. 1/4 turn washerless ceramic disc valve cartridges; 360-degree swivel brass spout; Lead free (≤ 0.25% total lead content); Includes brass escutcheon plate (6-1/8" L x 2-1/8" D). material: Brass
Connection size1/2"-NPSM
End connectionMale inlet shanks with brass coupling nuts
Flow Rate2.2 gpm/8.3 L/min (1.5 gpm/5.7 L/min for F15 models)
MountingCenterset, 4" (102mm) center-to-center
DimensionsHeight 12-1/4" (311mm), Reach 8-3/8" (213mm), Spout Diameter 7/8" (22mm).

Also cataloged as: 2770732.002, 2770732.224, 2770732.295
