American StandardPortsmouth® Single-Handle Pull-Down Bar Faucet 2.2 gpm/8.3 L/min4285410

American Standard Single-Handle Pull-Down Bar Faucet (Portsmouth). Model 4285.410. Washerless 35mm ceramic disc valve cartridge; Memory position valving; Single feature pull-down spray; Two integral check valves to prevent back flow. material: Zinc diecast body, brass swivel spout, metal lever handle

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF4285410.pdfData sheet

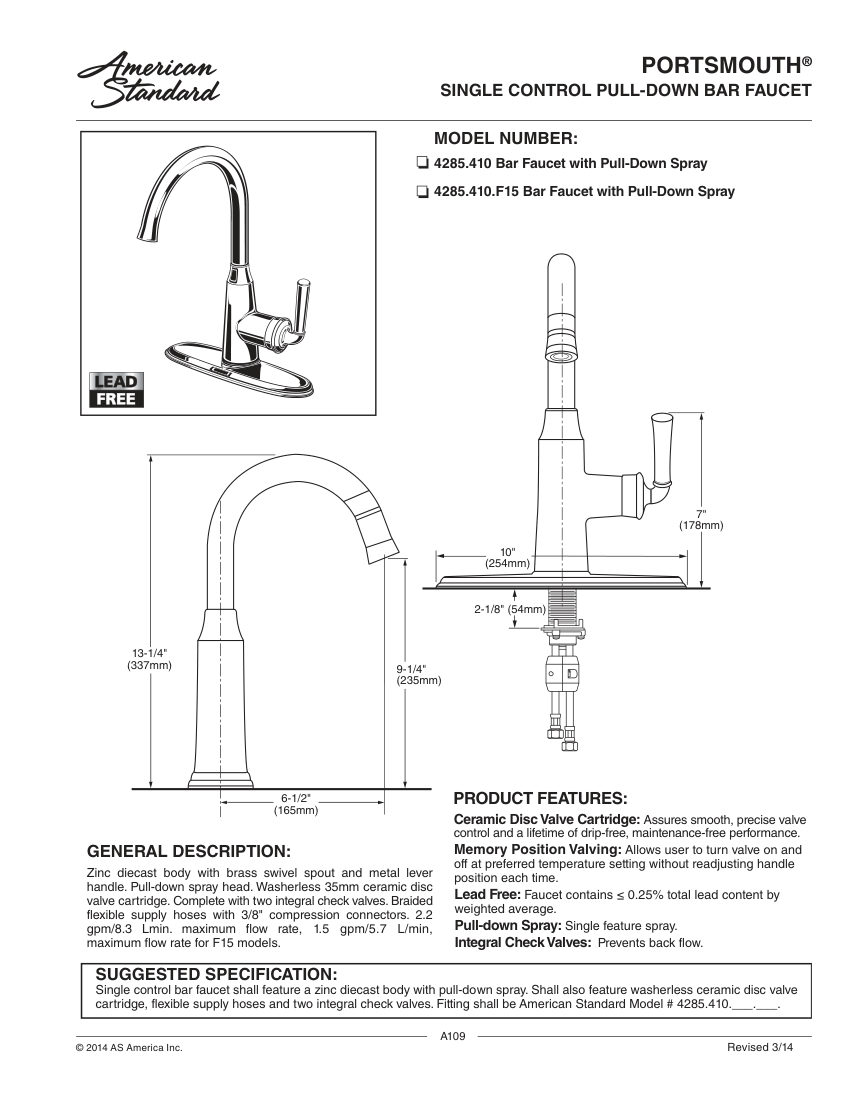

American Standard 4285410 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
4285410
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number4285410
DescriptionAmerican Standard Single-Handle Pull-Down Bar Faucet (Portsmouth). Model 4285.410. Washerless 35mm ceramic disc valve cartridge; Memory position valving; Single feature pull-down spray; Two integral check valves to prevent back flow. material: Zinc diecast body, brass swivel spout, metal lever handle
Connection size3/8" compression connectors
End connectionBraided flexible supply hoses
Flow Rate2.2 gpm/8.3 L/min (1.5 gpm/5.7 L/min for F15 models)
FinishPolished Chrome, Stainless Steel, Oil Rubbed Bronze
MountingBar faucet.

Also cataloged as: 4285410.002, 4285410.075, 4285410.224
