DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American StandardPekoe® Single-Handle Bar Faucet 2.2 gpm/8.3 L/min4332400

American Standard Single-Handle Bar Faucet (Pekoe). Model 4332.400. Washerless 40mm ceramic disc valve cartridge; 150° rotation swivel spout; Memory position valving; Lead free (≤ 0.25% total lead content). material: Forged brass body, brass swivel spout, metal lever handle

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF4332400.pdfData sheet

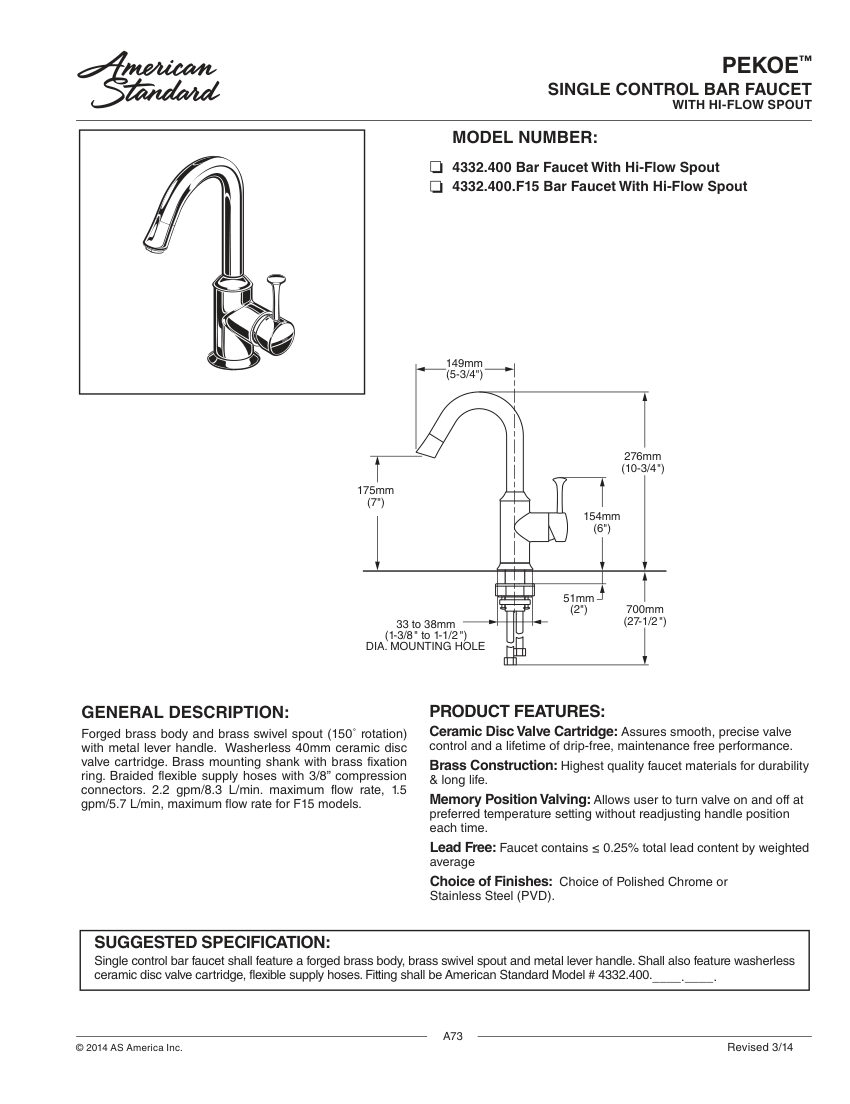

American Standard 4332400 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
4332400
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number4332400
DescriptionAmerican Standard Single-Handle Bar Faucet (Pekoe). Model 4332.400. Washerless 40mm ceramic disc valve cartridge; 150° rotation swivel spout; Memory position valving; Lead free (≤ 0.25% total lead content). material: Forged brass body, brass swivel spout, metal lever handle
Connection size3/8" compression connectors
End connectionBraided flexible supply hoses
Flow Rate2.2 gpm/8.3 L/min
FinishPolished Chrome or Stainless Steel (PVD)
MountingBrass mounting shank with brass fixation ring, 33 to 38mm (1-3/8" to 1-1/2") DIA. mounting hole.

Also cataloged as: 4332400.002, 4332400.075
