American StandardQuince® Single-Handle Kitchen Faucet 1.5 gpm/5.7 L/min With Side Spray4433001F15

American Standard Single-Handle Kitchen Faucet (Quince). Model 4433.001.F15. Washerless 40mm ceramic disc valve cartridge; 360-degree swivel cast brass spout; Includes separate color-matched handspray; Lead free (≤ 0.25% total lead content). material: Cast brass body, metal escutcheon, metal lever handle

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF4433001F15.pdfData sheet

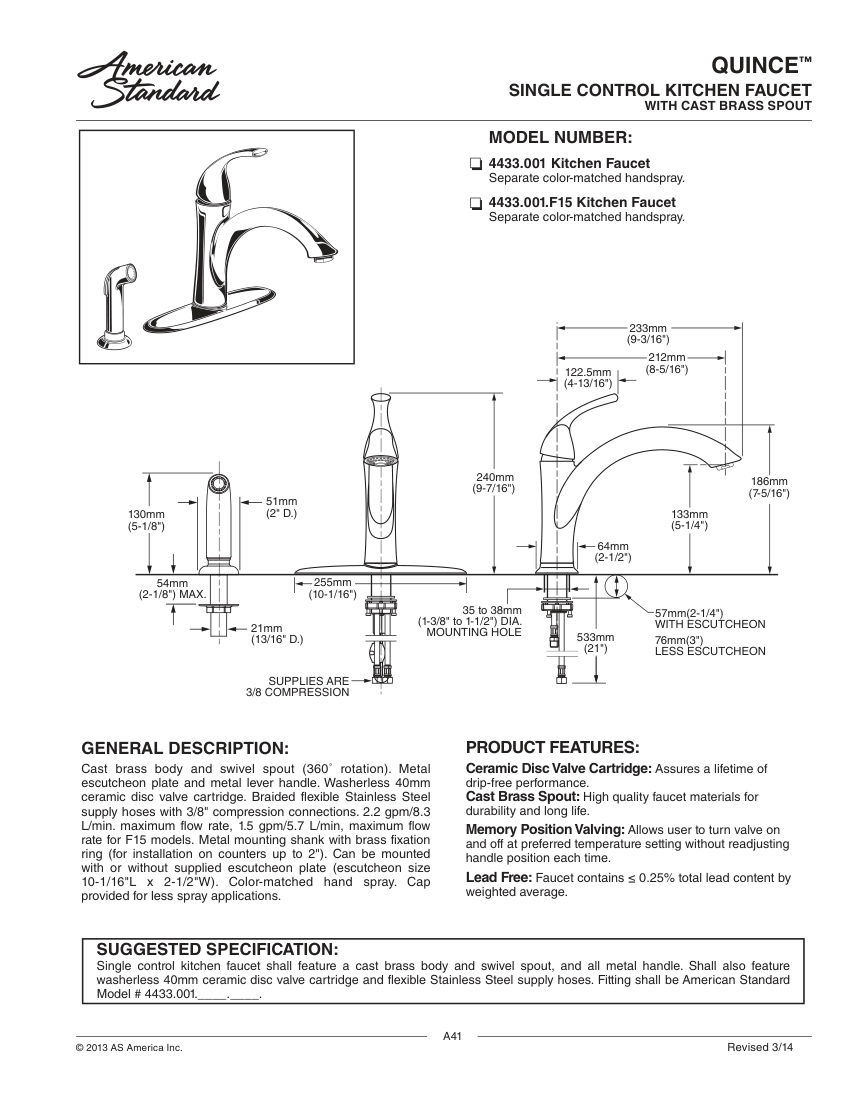

American Standard 4433001F15 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
4433001F15
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number4433001F15
DescriptionAmerican Standard Single-Handle Kitchen Faucet (Quince). Model 4433.001.F15. Washerless 40mm ceramic disc valve cartridge; 360-degree swivel cast brass spout; Includes separate color-matched handspray; Lead free (≤ 0.25% total lead content). material: Cast brass body, metal escutcheon, metal lever handle
Connection size3/8" compression
End connection3/8" compression
Flow Rate1.5 gpm/5.7 L/min
MountingSingle hole, 35 to 38mm (1-3/8" to 1-1/2") diameter
DimensionsHeight 255mm (10-1/16"), Spout Reach 212mm (8-5/16").

Also cataloged as: 4433001F15.002, 4433001F15.075, 4433001F15.224
