American Standard4508101

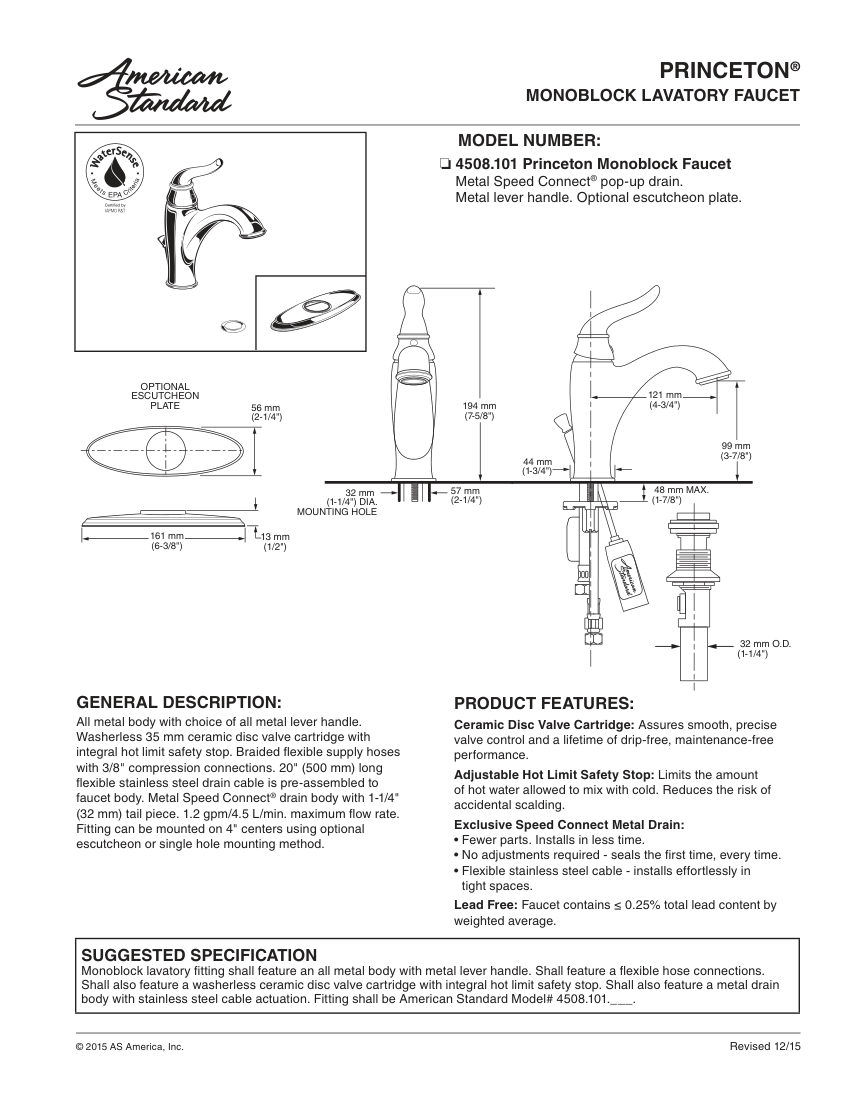

American Standard Monoblock Lavatory Faucet (Princeton). Model 4508.101. Washerless 35 mm ceramic disc valve cartridge; Integral hot limit safety stop; Metal Speed Connect pop-up drain with 20" (500 mm) stainless steel cable; 1-1/4" (32 mm) tail piece. material: All metal body, metal lever handle, metal drain body
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- American Standard
- Catalog no.
- 4508101
- Product type
- Faucets
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 4508101 |
|---|---|
| Description | American Standard Monoblock Lavatory Faucet (Princeton). Model 4508.101. Washerless 35 mm ceramic disc valve cartridge; Integral hot limit safety stop; Metal Speed Connect pop-up drain with 20" (500 mm) stainless steel cable; 1-1/4" (32 mm) tail piece. material: All metal body, metal lever handle, metal drain body |
| Connection size | 3/8" compression connections |
| End connection | Flexible hose connections |
| Flow Rate | 1.2 gpm/4.5 L/min |
| Mounting | Single hole or 4" centers with optional escutcheon |
| Dimensions | Height 194 mm (7-5/8"), Width 121 mm (4-3/4"), Mounting hole 32 mm (1-1/4"). |
Also cataloged as: 4508101.002, 4508101.224, 4508101.295
