DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard4931300

American Standard Single-Handle Pull-Down Kitchen Faucet (Kitchen Faucet). Model 4931.300. 35 mm ceramic disc valve cartridge; Re-Trax spray head retraction system; Includes 39" integrated braided stainless steel supply hoses; Two-function spray head with pause. material: Brass body, metal lever handle

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF4931300.pdfData sheet

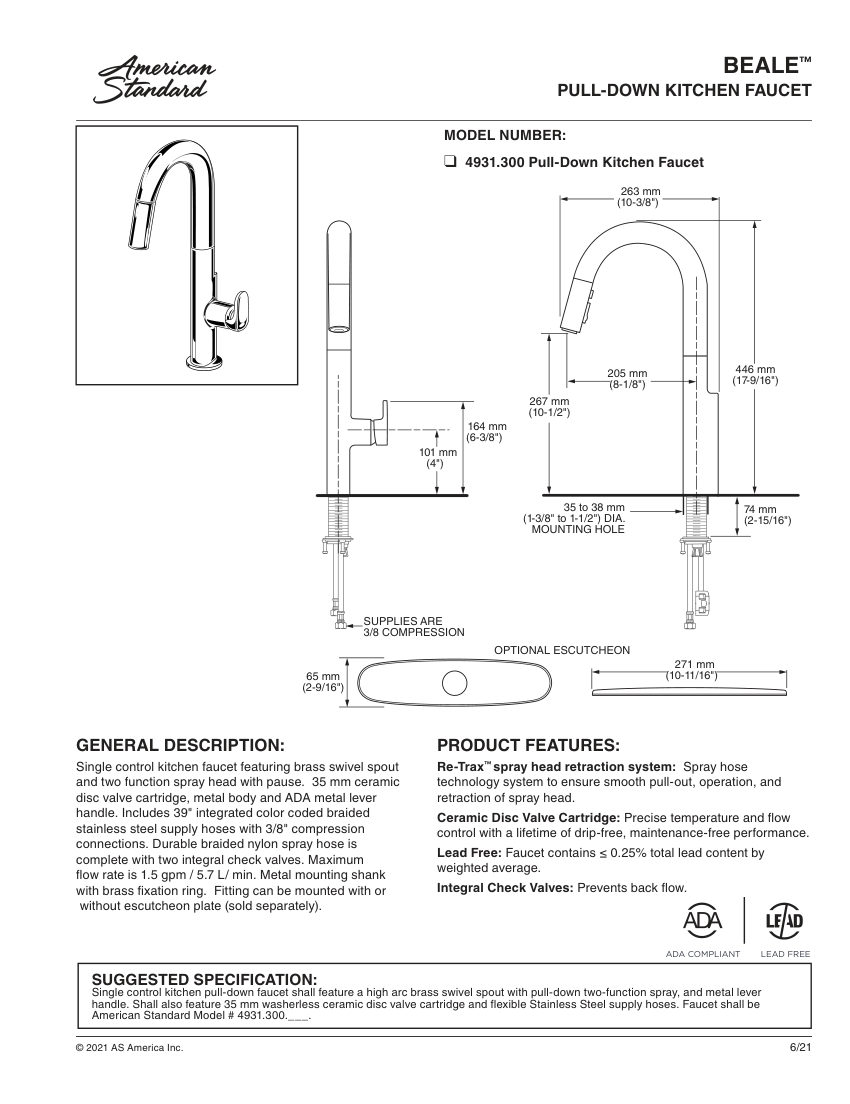

American Standard 4931300 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
4931300
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number4931300
DescriptionAmerican Standard Single-Handle Pull-Down Kitchen Faucet (Kitchen Faucet). Model 4931.300. 35 mm ceramic disc valve cartridge; Re-Trax spray head retraction system; Includes 39" integrated braided stainless steel supply hoses; Two-function spray head with pause. material: Brass body, metal lever handle
Connection size3/8" compression
End connection3/8" compression
Flow Rate1.5 gpm / 5.7 L/min
Mounting35 to 38 mm (1-3/8" to 1-1/2") DIA. mounting hole
DimensionsHeight 267 mm (10-1/2"), Spout Reach 205 mm (8-1/8").

Also cataloged as: 4931300.002, 4931300.075
