DIV 22 · PLUMBINGURINALSCUT SHEET INDEXED

American Standard6045601

American Standard Manual Urinal Flush Valve (Urinal Flush Valve). Model 6045.601.002. Piston-type valve with self-cleaning brass piston and integral wiper spring; Includes 1" I.P.S. angle stop with back-flow prevention and vandal-resistant cap; High back pressure vacuum breaker with down tube included; Chloramine-resistant EPDM seals. material: Cast brass, chrome-plated

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6045601.pdfData sheet

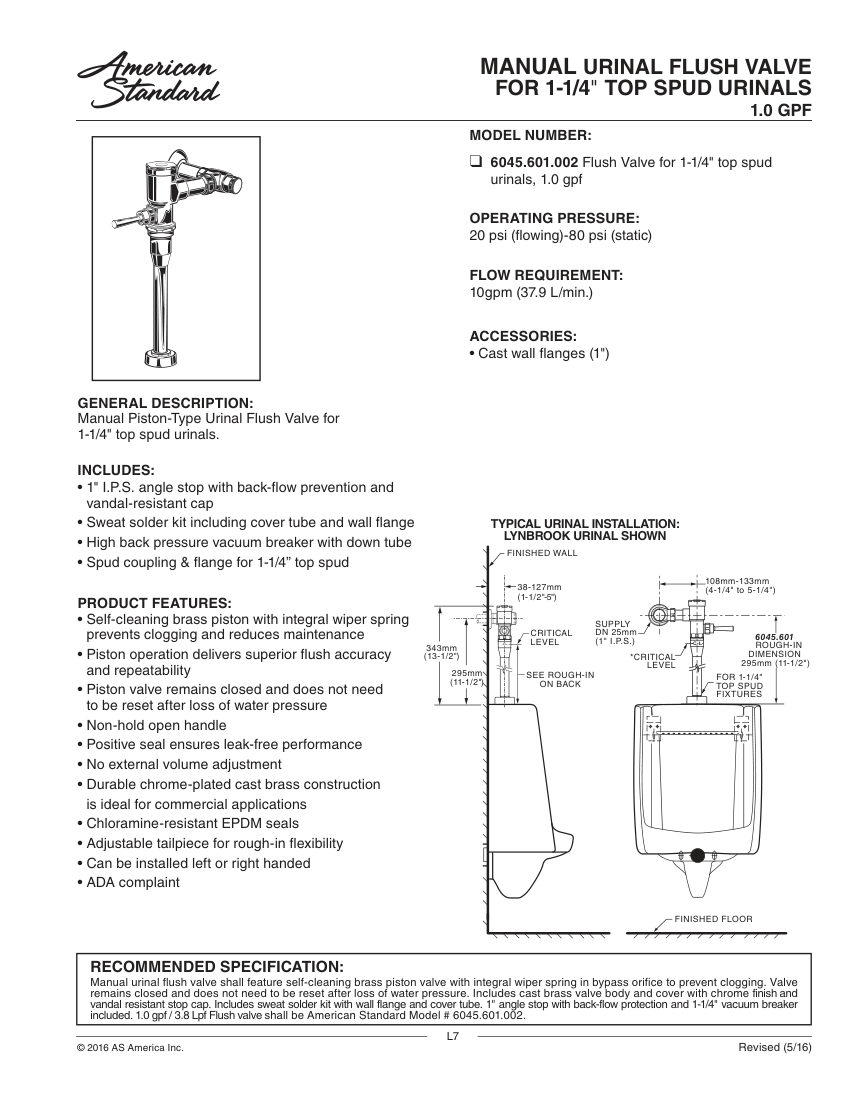

American Standard 6045601 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6045601
Product type
Urinals
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6045601
DescriptionAmerican Standard Manual Urinal Flush Valve (Urinal Flush Valve). Model 6045.601.002. Piston-type valve with self-cleaning brass piston and integral wiper spring; Includes 1" I.P.S. angle stop with back-flow prevention and vandal-resistant cap; High back pressure vacuum breaker with down tube included; Chloramine-resistant EPDM seals. material: Cast brass, chrome-plated
Connection size1-1/4" top spud
End connection1" I.P.S. angle stop, sweat solder
Pressure Rating20 psi (flowing) - 80 psi (static)
Flow Rate1.0 gpf / 3.8 Lpf
FinishChrome.

Also cataloged as: 6045601.002
