DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American Standard6047821

American Standard Manual Flush Valve With Bedpan Washer Assembly (Bedpan Washer Assembly). Model 6047.821.002. 1.28 gpf piston-operated manual flush valve; Includes 1" angle stop and inlet piping kit with sweat solder adapter; Counter balanced pivot assembly keeps spray arm in last position; Includes EPDM vacuum breaker assembly for chemical resistance. material: Solid brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6047821.pdfData sheet

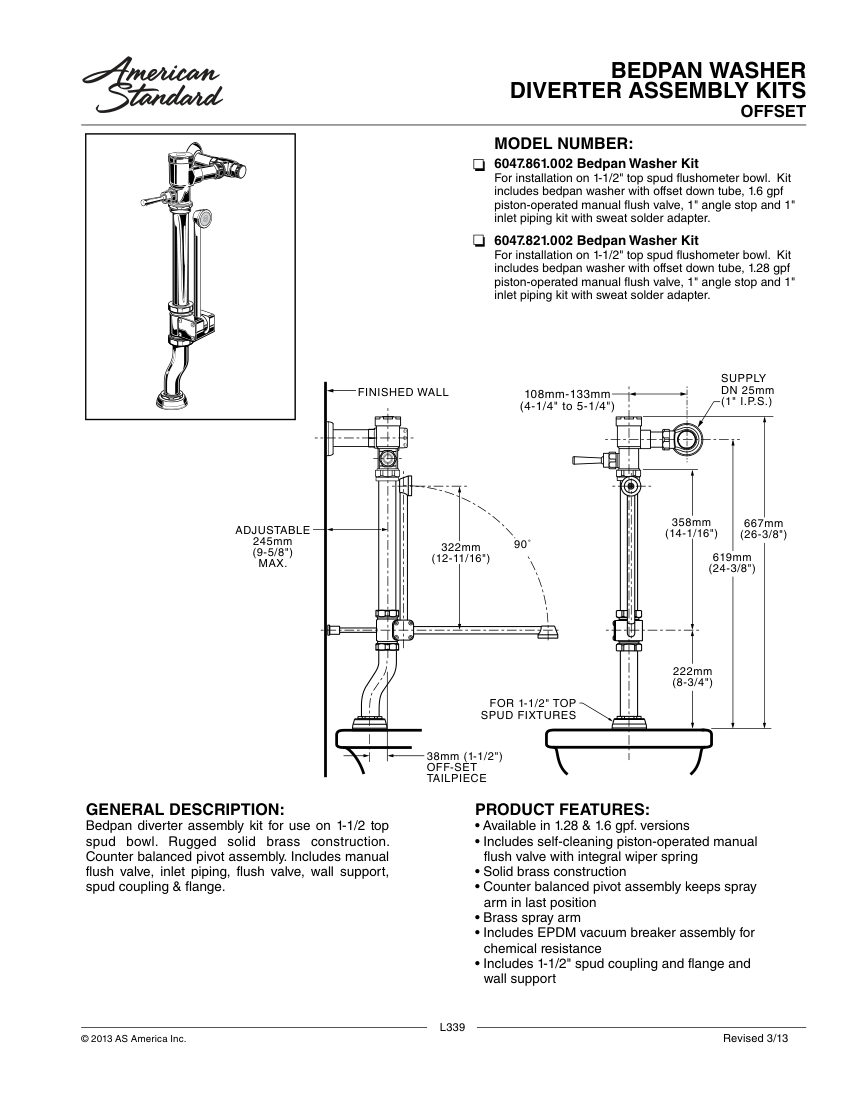

American Standard 6047821 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6047821
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6047821
DescriptionAmerican Standard Manual Flush Valve With Bedpan Washer Assembly (Bedpan Washer Assembly). Model 6047.821.002. 1.28 gpf piston-operated manual flush valve; Includes 1" angle stop and inlet piping kit with sweat solder adapter; Counter balanced pivot assembly keeps spray arm in last position; Includes EPDM vacuum breaker assembly for chemical resistance. material: Solid brass
Connection size1-1/2" top spud
End connection1" I.P.S. inlet
Flow Rate1.28 gpf
MountingWall support included
DimensionsOffset tailpiece 38mm (1-1/2").

Also cataloged as: 6047821.002
