American Standard6062601

American Standard Touchless Urinal Flush Valve (Urinal Flush Valve). Model 6062601.002. Battery-powered with 192,000 cycle life; Includes 1 inch I.P.S. angle stop with back-flow protection; Includes 1-1/4 inch vacuum breaker with adjustable tailpiece; Self-cleaning piston with integral wiper spring. material: Dezincification Resistant semi-red brass alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6062601.pdfData sheet

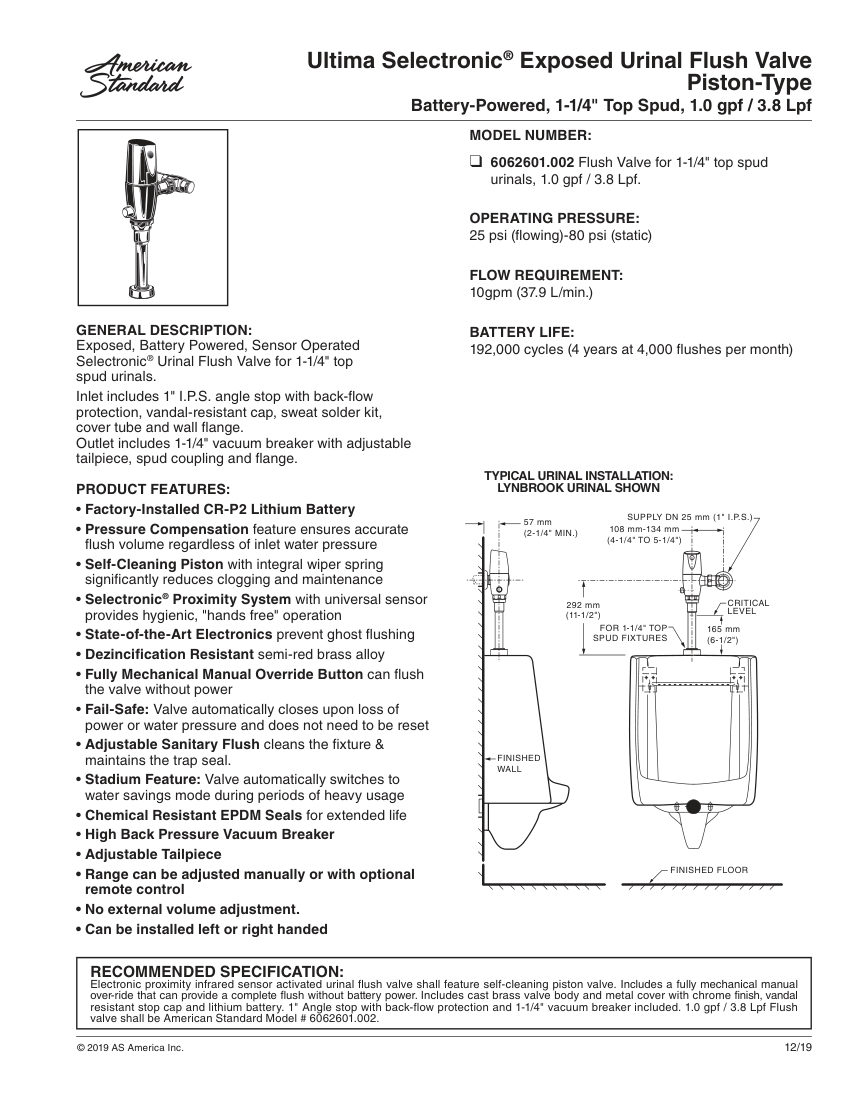

American Standard 6062601 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6062601
Product type
Urinals
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6062601
DescriptionAmerican Standard Touchless Urinal Flush Valve (Urinal Flush Valve). Model 6062601.002. Battery-powered with 192,000 cycle life; Includes 1 inch I.P.S. angle stop with back-flow protection; Includes 1-1/4 inch vacuum breaker with adjustable tailpiece; Self-cleaning piston with integral wiper spring. material: Dezincification Resistant semi-red brass alloy
Connection size1-1/4 inch top spud
End connection1 inch I.P.S. inlet, 1-1/4 inch outlet
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.0 gpf / 3.8 Lpf
FinishChrome.

Also cataloged as: 6062601.002
